Basement waterproofing for old buildings can become increasingly important as a property ages. A basement that remained dry for many years may eventually develop water seepage, wall cracks, damp patches, concrete leaks, ceiling leaks or recurring waterproofing problems.
For homeowners, property owners, commercial building maintenance teams and MCST maintenance teams, the challenge is often not simply stopping visible water. The bigger challenge is identifying where the water is actually coming from and why the waterproofing system has failed.
In Singapore, older buildings are exposed to a combination of environmental and building-related factors. Singapore weather is generally warm and humid, with periods of heavy rainfall. Over many years, repeated wetting and drying, temperature changes, building movement, ageing construction materials and maintenance issues can gradually affect concrete, joints, sealants, waterproofing systems and drainage arrangements.
An old basement may therefore experience rain water seepage, ground/soil water seepage, concrete leakage, wall joint cracks, micro cracks, failed sealants, deteriorated waterproofing membranes and concealed pipe leaks. In some situations, water may travel through the concrete or along concealed pathways before appearing at a completely different location.
Basement waterproofing for old buildings should not be approached as simply applying another layer of waterproofing over the visible wet area. A proper assessment should first identify the likely sources of water leakage, determine the pathway of water infiltration and then select an appropriate waterproofing solution treatment.
One of the most common questions property owners ask is:
“Why is my basement leaking now when it was dry for many years?”
There are several possible reasons why an old building may suddenly develop basement water leakage:
Building aging:
As a building gets older, concrete, waterproofing systems, joints, sealants and drainage components naturally deteriorate over time.
Concrete shrinkage and micro cracks:
Old concrete may develop shrinkage cracks and micro cracks due to ageing, movement and environmental conditions. These small openings can eventually become pathways for water.
Wall cracks:
Wall cracks can develop due to concrete movement, settlement, thermal movement or other building-related conditions. If the cracks are connected to areas exposed to water, they may allow water to enter the basement.
Movement at joints:
Construction joints, expansion joints and other connections between building components may experience movement over the years. Repeated movement can gradually weaken waterproofing details.
Deteriorated sealants:
Sealants used around joints and penetrations can become brittle, lose adhesion or crack as they age. A sealant worn off due to heat expansion may eventually leave gaps through which water can enter.
Singapore weather:
Singapore weather is generally warm and humid, with periods of heavy rainfall. Continuous exposure to heat, moisture and rain can gradually affect exposed building materials and waterproofing components.
Hot/cold expansion:
Repeated temperature changes can cause construction materials to expand and contract. This hot/cold expansion, also known as thermal movement, can place repeated stress on concrete joints, sealants, coatings and waterproofing details.
Deteriorated waterproofing membrane:
An existing waterproofing system may become less effective as it ages. A waterproofing membrane worn out over many years may allow moisture from the surrounding soil to reach the basement wall.
Ground/soil water seepage:
Underground walls are constantly exposed to surrounding soil. When the ground becomes saturated, water pressure can increase against the basement structure and contribute to ground/soil water seepage.
Hydrostatic pressure:
Water accumulated outside an underground basement can create hydrostatic pressure. If there are cracks, weak joints or deteriorated waterproofing areas, this pressure can push water through vulnerable sections of the structure.
Drainage problems:
Blocked, damaged or insufficient drainage can cause water to accumulate around the building. Increased water accumulation can place additional pressure on basement walls and increase the possibility of water seepage.
Changes around the building:
Changes to surrounding landscaping, external structures, paving or drainage arrangements can sometimes alter how rainwater moves through the ground and reaches an underground basement wall.
Seal damage:
Damaged or deteriorated seals around joints, pipe penetrations and other building details can create potential water entry points.
Previous poor workmanship:
Poor workmanship during the original construction or previous waterproofing repairs can result in weak joints, inadequate sealing, improper membrane installation or incomplete crack treatment. These defects may only become noticeable years later.
Multiple ageing problems:
An old building does not necessarily develop a basement leak because of one single defect. Several problems can occur at the same time, such as micro cracks, wall cracks, deteriorated joints, seal damage and a waterproofing membrane worn out.
Waterproofing failure:
When one or more of these ageing issues combine, the existing waterproofing system may eventually experience waterproofing failure, resulting in visible water seepage, damp walls, stains or an active waterproofing leak.
Why Early Investigation Is Important?
A basement may remain dry for many years before a leakage becomes visible. Once water appears, the visible wet area may not always be the actual source of the problem. Water can travel through cracks, joints and concrete before appearing at another location.
Therefore, property owners, homeowners and MCST maintenance teams should investigate the source of water leakage rather than simply covering the visible stain or repairing the surface. Identifying the actual cause can help determine whether the appropriate solution involves crack repair, joint treatment, PU Injection grouting, drainage improvement, membrane repair or another waterproofing solution treatment.
Common Sources of Water Leakage in an Old Basement
1. Wall Cracks and Micro Cracks
Wall cracks are among the most obvious signs of potential water infiltration. Larger cracks are easy to identify, but micro cracks can be more difficult to detect.
Small cracks can form because of concrete shrinkage, building movement, thermal movement, settlement or other construction-related conditions. If these cracks connect with pathways exposed to water pressure, they can allow moisture to enter the basement.
A common mistake is to simply fill a visible crack without determining whether water is actively travelling through it. If the crack continues to move or another connected pathway exists behind the surface, the repair may not provide a long-term solution.
2. Wall Joint Cracks
Basement walls often contain construction joints, movement joints or other interfaces between different sections of the building.
Wall joint cracks can become particularly vulnerable when joint sealants deteriorate or when movement occurs over the years.
If a joint has experienced seal damage, water may enter through the opening and travel into the basement.
3. Waterproofing Membrane Worn Out
Another common cause is a waterproofing membrane worn out due to age, environmental exposure, mechanical damage or deterioration of the waterproofing system.
Older buildings may have waterproofing systems that were installed many years ago. Even when the original system was properly installed, waterproofing materials do not necessarily remain in their original condition indefinitely.
When an external membrane deteriorates, water from surrounding soil can potentially reach the basement wall. The resulting water seepage may initially be minor before becoming more noticeable during periods of heavy rain.
4. Ground/Soil Water Seepage
Basements are surrounded by soil. When the surrounding ground becomes saturated after rainfall, water can exert pressure against underground walls.
This can result in ground/soil water seepage, especially where external waterproofing has deteriorated or where cracks, joints and penetrations have become vulnerable.
Hydrostatic pressure can push water through relatively small defects. This is one reason why a basement may leak more heavily during or after prolonged rainfall.
5. Rain Water Seepage
Rain water seepage is another possible cause. Heavy rainfall can increase the amount of water entering the ground surrounding a building. If surface drainage, waterproofing or external detailing is inadequate, rainwater may eventually reach vulnerable areas of the basement structure.
If the same basement area becomes wet after heavy rain but gradually dries during prolonged dry weather, this information can be useful during a professional waterproofing investigation.
6. Concealed Pipe Leak
Not every basement leak comes from the surrounding soil.
A concealed pipe leak may occur within walls, floors, ceilings or other building components. A leaking water pipe, drainage pipe or service pipe can release water into areas that are difficult to inspect visually.
The word concealed is important because the actual leak may be hidden while the visible water appears several metres away. Property owner may notice a damp wall and assume it is caused by groundwater. However, the actual source could be a pipe leak behind the wall.
This is why identifying the actual source before selecting a waterproofing method is so important.

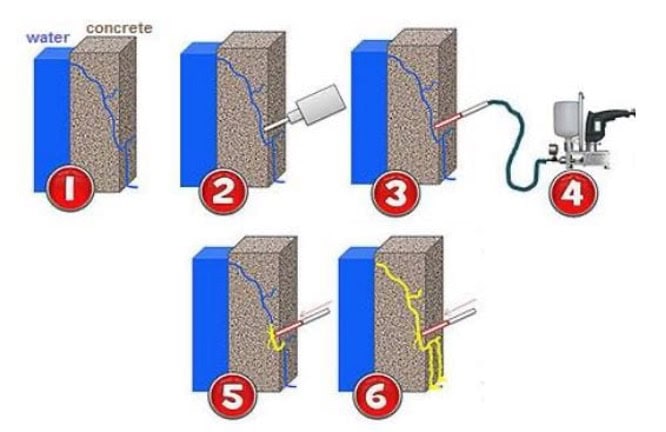

Benefits of PU Injection Treatment for an Old Basement
PU Injection grouting is a widely used technique for treating water leakage through cracks, joints and other pathways in concrete structures. PU grout is injected into a crack or leakage pathway through injection ports installed at appropriate locations, the material can react with moisture and expand, helping to fill voids and water pathways within the affected area.
PU Injection particularly useful when dealing with active water infiltration through concrete.
1. Helps Stop Water Seepage Through Concrete Cracks
One of the main benefits of PU Injection is its ability to treat suitable cracks where water is entering through the concrete.
In an old basement, wall cracks, micro cracks and concrete joints can become pathways for water. PU grout can be injected into selected cracks to help fill and seal the water pathway, reducing further water seepage through the affected area.
2. Suitable for Certain Active Water Leaks
Some basement leaks remain active even when water is visibly flowing through a crack or joint. Certain PU injection materials are designed to react with moisture and expand, allowing the material to penetrate suitable leakage pathways.
This makes PU Injection a useful treatment option for certain active basement water leaks, although the appropriate material and application method depend on the actual site condition.
3. Helps Seal Hidden Water Pathways
Water does not always travel directly from the outside of the basement wall to the visible leakage point. It can move through cracks, voids and interconnected pathways inside concrete.
With appropriate injection, PU grout can travel into suitable spaces and help seal some of these hidden pathways.
This can be particularly useful when dealing with an old basement where the original waterproofing system may have deteriorated.
4. Can Be Used Where External Access Is Difficult
Old basement walls are often surrounded by soil, roads, landscaping, neighbouring structures or other building components.
Excavating the outside of an underground wall to repair an external waterproofing membrane can be expensive and disruptive.
PU Injection can sometimes be carried out from the accessible side of the basement, making it a practical option when external excavation is not feasible.
5. Can Reduce the Need for Extensive Hacking
For suitable leakage conditions, PU Injection can be part of a non-hacking waterproofing method or a relatively low-disruption repair approach.
Reducing extensive hacking can help minimise dust, noise, debris and reinstatement work.
6. Suitable for Localised Basement Leakage
Not every basement requires complete waterproofing replacement.
If water leakage is concentrated around a specific crack, construction joint, expansion joint or penetration, PU Injection may allow the contractor to focus treatment on the affected location.
This targeted approach can be useful when the surrounding waterproofing system remains reasonably functional.
7. Expanding Grout Can Help Fill Irregular Voids
Certain polyurethane grouting materials are designed to expand when they come into contact with moisture.
This concrete grouting expansion can help the grout occupy suitable voids and irregular spaces associated with water pathways.
The degree of expansion and final performance depends on the specific PU grout product, moisture conditions and application technique. Therefore, proper product selection and workmanship are important.
8. Can Help Address Recurring Basement Leaks
Old buildings may have experienced previous waterproofing repairs that temporarily reduced leakage but did not completely address the water pathway.
If the same crack or joint continues to leak, a properly investigated PU Injection treatment may provide another approach to addressing the leakage pathway.
However, recurring leakage should always be investigated carefully to determine whether the crack is moving, whether hydrostatic pressure is involved, or whether another source of water is contributing to the problem.
9. Less Disruptive Than Major Excavation in Some Situations
For an old building, major excavation can affect landscaping, driveways, carparks, structures and building operations.
Where technically appropriate, injection waterproofing can avoid some of these extensive works because treatment can potentially be carried out from the accessible side.
This can make PU Injection attractive to MCST maintenance teams and commercial building maintenance teams that need to control disruption.
10. Useful for Hard-to-Reach Basement Areas
Old buildings often have complicated basement layouts containing plant rooms, structural walls, pipework, services and other obstructions.
Some leakage locations can be difficult to access using conventional waterproofing methods.
Injection techniques can sometimes provide a way to treat selected leakage points without removing large areas of existing finishes.
11. Can Help Extend the Serviceability of Existing Concrete
The objective of basement waterproofing is not simply to make a wall look dry.
By addressing suitable water pathways, PU Injection can help reduce continued water penetration through affected areas. This can be beneficial for maintaining the condition of an ageing basement, particularly when combined with appropriate concrete and building maintenance.
It is important, however, to distinguish waterproofing repair from structural repair. If an old building has significant structural cracks, movement or concrete deterioration, the condition should be properly assessed rather than assuming that injection waterproofing alone is sufficient.
Most importantly, property owners should avoid repeatedly treating the visible symptom without investigating the source. A recurring waterproofing leak may indicate a deeper problem that requires proper diagnosis.
For homeowners, landed property owners, commercial property owners, building maintenance teams and MCST maintenance teams in Singapore, selecting an experienced waterproofing contractor can make a significant difference. The contractor should be able to investigate the sources of water leakage, understand how water travels through an old building and recommend a suitable waterproofing solution treatment rather than applying a one-size-fits-all solution.
