Roof leakage is one of the most common waterproofing concerns faced by property owners in Singapore. When a roof starts leaking, the first visible signs may appear as damp patches, peeling paint, a wall brown stained mark, mould growth or water dripping from the ceiling. Because many waterproofing products are now readily available in hardware stores and online, some homeowners may consider repairing the problem themselves. Waterproofing paint, sealants, liquid membranes and crack repair products can appear relatively simple to use, leading many property owners to believe that applying a waterproofing product over the affected area will solve the problem.
However, the reality is that roof waterproofing is not always as straightforward as applying a coating over a visible crack. A roof may develop leakage because of building aging, deterioration of the existing waterproofing system, weather changes due to hot/cold expansion, joint movement, concrete deterioration, drainage problems or concealed water pathways. In some cases, what appears to be a roof waterproofing problem may even be caused by a concealed pipe leak or another plumbing defect.
Does DIY roof waterproofing actually work?
The answer depends largely on the cause and extent of the leakage. DIY waterproofing may be effective for certain minor and clearly identified surface defects. However, when the roof has extensive deterioration, recurring leakage, structural cracks or a waterproofing membrane worn out, applying another layer of waterproofing material may only provide temporary improvement without resolving the underlying problem.
For property owners in Singapore, understanding the difference between a simple surface repair and a complete waterproofing failure is important before deciding whether DIY roof waterproofing is appropriate.
What Is DIY Roof Waterproofing?
DIY roof waterproofing refers to a property owner attempting to repair or protect a roof without engaging a professional waterproofing contractor. Common DIY approaches include applying waterproofing paint, liquid waterproofing coatings, PU or silicone sealants, waterproofing tapes, crack fillers and other waterproofing products.
These products can have their place in minor repair works. For example, if there is a small, stable surface crack on an otherwise well-maintained roof, an appropriate sealant may be able to prevent water from entering through that particular opening. Likewise, a suitable liquid waterproofing coating may help protect an existing surface when the underlying substrate and waterproofing system remain in good condition.
The problem occurs when the visible defect is assumed to be the actual source of the leakage.
Water does not always travel directly from the point where it enters the roof to the location where it eventually becomes visible. Rainwater can penetrate through cracks, joints or deteriorated waterproofing layers and travel through concrete before appearing on a ceiling or internal wall. This means that the location of a water stain may be different from the original point of water entry.
For this reason, effective roof waterproofing involves more than simply applying a waterproofing product. The source of the leakage needs to be identified, the condition of the roof needs to be assessed and the appropriate waterproofing treatment needs to be selected.

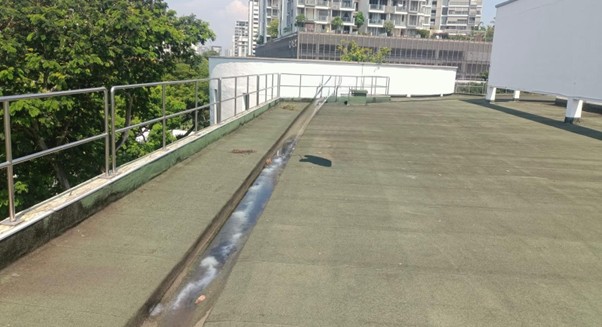

Why Do Roofs Develop Waterproofing Problems?
A roof is continuously exposed to environmental conditions throughout its service life. As a building becomes older, the materials forming the roof can gradually deteriorate. This natural process of building aging can affect concrete, waterproofing membranes, sealants, joints and other components.
A waterproofing system that performed effectively when the building was newly constructed may eventually lose its performance because of prolonged exposure to sunlight, rain, humidity and movement. Small defects that initially appear insignificant may gradually become larger pathways for water.
Singapore’s climate can further contribute to roof deterioration. Although Singapore does not experience extreme seasonal temperature changes, roof surfaces can become significantly warmer during periods of strong sunlight and then cool rapidly during rain or at night. These repeated cycles create movement within materials and are commonly associated with hot/cold expansion or thermal expansion.
1. Weather Changes Due to Hot/Cold Expansion
Repeated weather changes due to hot/cold expansion can cause different building materials to expand and contract at different rates. Concrete, metal components, sealants, waterproofing coatings and other materials do not necessarily respond to temperature changes in exactly the same way.
Over a long period, repeated movement can contribute to the development of micro cracks, surface cracks and joint deterioration. Areas where two different materials meet can be particularly vulnerable because the materials may experience different rates of movement.
This is why roof waterproofing should take movement into consideration. A waterproofing system that does not accommodate expected movement may eventually crack, separate or lose adhesion.
2. Lighting Impact, Sunlight and UV Exposure
Roof surfaces are exposed to sunlight for extended periods. The effect of sunlight and UV exposure should therefore also be considered when assessing the condition of an existing waterproofing system.
Certain coatings and sealants may deteriorate after prolonged exposure to UV radiation. As materials age, they may become brittle, lose flexibility or develop surface damage. This can become more noticeable around joints, edges, penetrations and other areas where movement occurs.
If a waterproofing system is already deteriorated, applying another coating over the existing surface without addressing the underlying condition may not provide a reliable long-term solution.
3. Joint Expansion and Roof Movement
Joints are another common area of concern in roof waterproofing. Buildings require joints to accommodate movement, but these areas also need to remain properly sealed against water.
As the roof expands and contracts, joint expansion and contraction can place stress on sealants and waterproofing materials. If the joint detailing is poor or the sealant has deteriorated, water can find its way into the building.
This can eventually result in wall joint cracks, ceiling stains and recurring water seepage.
A joint should therefore not simply be treated as a normal crack. The appropriate repair depends on whether it is a construction joint, movement joint, expansion joint or another type of connection within the building.
Common Signs of Roof Waterproofing Failure
Roof waterproofing problems do not always begin with obvious water dripping. In many cases, the early signs are subtle. A property owner may notice a damp patch after heavy rain, a recurring stain on the ceiling or a wall brown stained mark that gradually becomes darker.
Other signs can include peeling paint, bubbling finishes, mould growth, damp concrete, deteriorated sealants, visible roof cracks and recurring water seepage.
If these symptoms repeatedly appear after rainfall, it is worth investigating the roof and surrounding areas rather than simply repainting the affected internal surface.
A recurring stain may indicate that water is continuing to enter the building. Repainting the ceiling may improve its appearance temporarily, but it does not stop the source of the water.
1. Waterproofing Membrane Worn Out
Many rooftop waterproofing systems depend on a waterproofing membrane to prevent rainwater from entering the underlying concrete structure. Over time, this membrane can deteriorate because of age, weather exposure, movement, poor maintenance or previous installation problems.
A waterproofing membrane worn out condition may appear as peeling, blistering, cracking, delamination, exposed substrate or general loss of waterproofing performance.
When only a small area is affected, localised repair may sometimes be appropriate. However, if the membrane has deteriorated extensively, applying another coating over selected areas may not restore the overall waterproofing system.
A professional assessment can determine whether the existing system can be repaired, over coated or requires more extensive rehabilitation.
2. Rain Water Seepage and Rain Water Ponding
Heavy rainfall is an important consideration for rooftop waterproofing in Singapore. When rainwater drains away quickly, the roof is exposed to moisture for a relatively short period. However, when drainage is poor, rain water ponding can occur.
Rainwater may remain on the roof because of blocked drains, inadequate falls, uneven surfaces, settlement or drainage defects. Prolonged ponding keeps the roof surface wet and increases the opportunity for water to enter through existing cracks, joints or deteriorated waterproofing.
This can eventually lead to rain water seepage through the roof structure.
For this reason, roof waterproofing and drainage should be considered together. Waterproofing alone may not solve a problem caused by persistent ponding.
3. Seal Wall and Roof Cracks
One of the most common DIY approaches is to locate a visible crack and apply sealant over it. While this may be suitable for certain small and stable cracks, it is important to understand that not every crack is simply a surface defect.
Wall cracks, concrete cracks and micro cracks can develop for different reasons. Some may be superficial, while others may extend deeper into the substrate. Some cracks may also experience movement because of thermal expansion or structural movement.
If the crack continues to move after repair, the sealant may eventually separate from the substrate.
This can result in sealant worn off due to heat expansion, followed by renewed water ingress. Where there is seal damage, simply applying another layer of sealant over the old material may not provide a durable repair.
The existing failed sealant may need to be removed and the joint or crack properly prepared before a suitable replacement material is installed.
4. Concrete Grouting Expansion and Concrete Hairline Cracks
Concrete roofs can develop fine cracks as a building ages. Terms such as concrete grouting expansion and concrete grout hairline crack may be used when discussing fine cracks, voids or defects associated with concrete structures.
A hairline crack may initially appear insignificant. However, if it provides a pathway for water, repeated exposure to rainfall can allow moisture to travel deeper into the concrete.
Over time, this can contribute to a recurring concrete leak, particularly when the roof is exposed to prolonged rainfall or ponding water.
Where active water is entering through concrete cracks or voids, PU injection grouting may be considered as part of a targeted waterproofing repair strategy. The objective is to seal the water pathway within the affected concrete rather than simply covering the visible surface.
5. Concealed Pipe Leak that causing the leak
Not every ceiling leak or damp patch is caused by roof waterproofing.
A concealed pipe leak can sometimes produce symptoms that look similar to a waterproofing leak. A leaking water supply pipe, drainage pipe or pipe connection may allow water to enter areas that are difficult to see.
This is why it is important to distinguish between a pipe leak, a waterproofing defect and other sources of concealed water ingress.
If waterproofing treatment is carried out without identifying the actual source, the leakage may continue even though money has already been spent on the roof.
A proper investigation should therefore consider plumbing, drainage and waterproofing as possible sources where appropriate.
Different Rooftop Waterproofing Methods and Their Benefits
There are several types of rooftop waterproofing methods available. The most suitable method depends on the roof construction, substrate, existing waterproofing condition, extent of deterioration, movement and actual source of leakage.
1. Liquid Waterproofing Solution Treatment
A liquid waterproofing system is applied directly to the prepared roof surface to create a continuous waterproofing layer. This type of waterproofing liquid solution treatment can be useful for suitable roof substrates where the existing surface is stable and properly prepared.
One of the main benefits is that liquid waterproofing can follow irregular roof profiles and provide continuous coverage around suitable details. It can also be useful for roof rehabilitation where extensive hacking is undesirable.
A liquid system can provide a relatively seamless waterproofing layer when correctly applied. It may also be useful around certain penetrations, corners and difficult areas where conventional sheet materials can require additional detailing.
However, surface preparation is extremely important. Dust, dirt, loose coatings, existing failed waterproofing and moisture within the substrate can affect adhesion. Applying a liquid product over a poor substrate can lead to premature waterproofing failure.

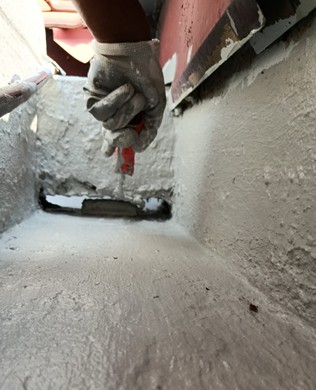

2. Waterproofing Membrane System
A waterproofing membrane provides a dedicated water-resistant barrier between rainwater and the underlying roof structure.
Membrane systems can be suitable for larger roof areas and may provide long-term protection when correctly specified and installed. They can protect the concrete substrate from prolonged exposure to rainwater and can form part of a comprehensive rooftop waterproofing system.
However, membrane installation requires careful attention to joints, laps, edges, corners, penetrations and termination points. These areas can become potential leakage points if installation is carried out incorrectly.
This is why poor workmanship can undermine even a high-quality waterproofing material.

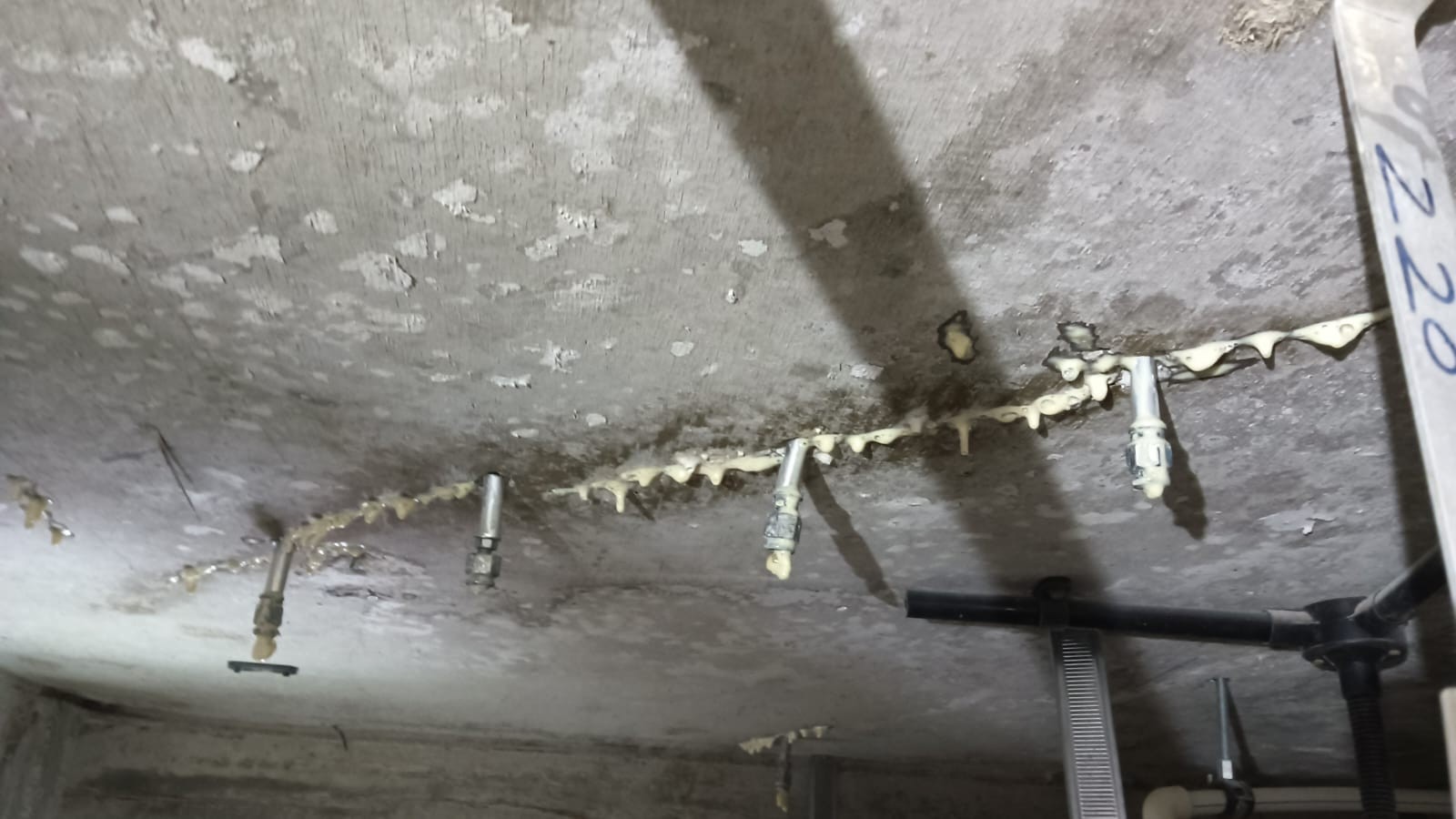

3. PU Injection Grouting
PU injection grouting is a targeted waterproofing method commonly considered for suitable cracks, voids and water pathways in concrete.
The polyurethane material is injected into appropriate areas of the concrete structure and can react and expand, helping to seal water pathways.
The main benefit of PU injection is that it can address leakage within cracks and voids without necessarily requiring extensive hacking of the surrounding finishes. This makes it particularly useful where a non-hacking waterproofing method is preferred and where the actual defect is located within the concrete structure.
PU injection is suitable for concrete slab leaks, wall leaks, joints and other areas where water is actively entering through cracks or voids.

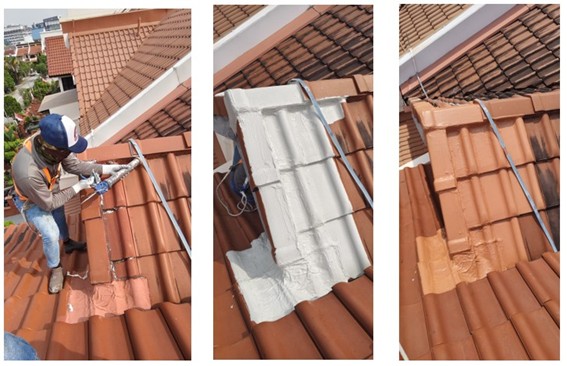

4. Waterproofing Sealant Replacement
Sealants play an important role around joints, penetrations, edges and junctions. Over time, sealants may deteriorate because of UV exposure, moisture, ageing and repeated movement.
When the sealant worn off due to heat expansion, water can enter through the affected joint.
Replacing damaged sealant can be an effective localised waterproofing repair when the defect is genuinely limited to the joint or opening.
The old failed material should generally be removed where necessary, the surface prepared and a suitable sealant installed according to the joint condition and expected movement.
5. Cementitious Waterproofing
Cementitious waterproofing products are designed for use on suitable concrete and masonry substrates. They can form a protective waterproofing layer and may be appropriate for certain roof and concrete applications.
One advantage is compatibility with selected cement-based substrates. They can also be used as part of broader waterproofing systems where the substrate and exposure conditions are suitable.
As with all waterproofing methods, proper surface preparation and application are essential.

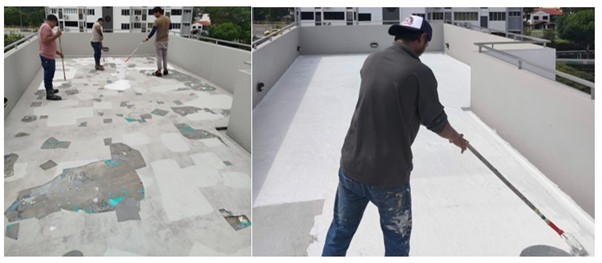

Why DIY Roof Waterproofing Often Fails
One of the main reasons DIY waterproofing fails is that the visible problem is treated instead of the actual cause.
A homeowner may see water staining on a ceiling and immediately assume that the roof directly above the stain is leaking. However, water may have travelled through the concrete slab before appearing inside the building.
Another common problem is applying a waterproofing coating over an existing failed waterproofing system. If the underlying membrane has already deteriorated, another surface coating may not address the underlying failure.
Drainage is another important factor. If rain water ponding continues after the waterproofing work, the roof remains exposed to prolonged water contact.
Movement can also cause problems. A rigid coating or inappropriate sealant may crack when subjected to repeated thermal expansion and contraction.
Finally, poor workmanship can cause premature failure even when the waterproofing product itself is suitable.
How Property Owners Can Prevent Roof Waterproofing Problems
Regular inspection can help property owners identify waterproofing deterioration before it develops into a major leakage problem.
Roofs should be inspected periodically for cracks, deteriorated sealants, ponding water, blocked drains, damaged coatings and other signs of deterioration.
Property owners should also pay attention to recurring internal stains. If a wall brown stained mark repeatedly appears after rainfall, repainting the affected area may only hide the evidence temporarily.
The source should be investigated.
Similarly, if the same waterproofing area has been repaired several times but continues to leak, repeated patching may no longer be the most effective strategy.
SWC Construction provides waterproofing and leakage investigation services in Singapore, including roof waterproofing, PU injection grouting and thermal leak detection.
We are a BCA-registered/approved waterproofing contractor, BizSAFE Level 3 certified and an HDB-appointed waterproofing contractor.
SWC Construction also promotes customer feedback and Google reviews as an important part of its reputation. The company has described itself as having the highest Google reviews among waterproofing contractors based on own customer-feedback and Google-review comparisons. Because rankings and review counts change over time, property owners should verify the latest Google review position before treating this as an objective industry-wide ranking.
More importantly, SWC Construction’s approach is focused on identifying the source of the leakage before selecting the appropriate repair method.
Whether the problem involves rain water seepage, concrete slab damage, a waterproofing membrane worn out, roof cracks, joint deterioration, concealed leakage or another form of waterproofing failure, the objective should always be to identify the actual source before deciding on the repair method.
For homeowners, landed property owners, commercial building maintenance teams and MCST management teams in Singapore, engaging an experienced waterproofing contractor can help reduce repeated trial-and-error repairs and provide a more systematic approach to difficult leakage problems.
If your property is experiencing a recurring waterproofing leak, contact us to arrange a professional assessment and discuss an appropriate waterproofing solution for your property.
