Many homeowners assume that a roof leak only becomes a problem when water starts dripping from the ceiling during a heavy thunderstorm. Unfortunately, this is one of the biggest misconceptions about roof waterproofing failure. By the time you notice water dripping inside your home, the damage has often been developing for months—or even years—beneath the roof surface.
Singapore’s tropical climate places tremendous stress on every type of roofing system. Daily heat expansion, intense UV radiation, prolonged humidity, and sudden torrential rainfall gradually weaken roof membranes, deteriorate sealants, enlarge micro cracks, and create hidden pathways for rainwater seepage. Even the smallest defect can allow water to penetrate the roof structure, where it slowly travels through concrete slabs, wall joint cracks, insulation layers, and structural voids before appearing somewhere completely different inside the building.
This is why many property owners mistakenly repair the visible stain on the ceiling rather than addressing the actual sources of water leakage. In reality, water rarely drips directly beneath the point where it enters. Instead, it follows the path of least resistance through concrete, reinforcement bars, construction joints, and hollow sections until it eventually reaches the weakest point of the building.
Whether you own an HDB flat, condominium, landed house, commercial building, warehouse, factory, or industrial property, recognising the early warning signs of roof waterproofing failure can save thousands of dollars in repair costs. Early diagnosis not only prevents structural deterioration but also protects your family’s health by reducing mould growth, damp indoor conditions, and persistent musty smell in the room or attic caused by hidden moisture.
Common Waterproofing Failure Mistakes
Every roofing system has unique failure mechanisms. Understanding these helps property owners implement the correct repair strategy rather than applying unsuitable short-term fixes.

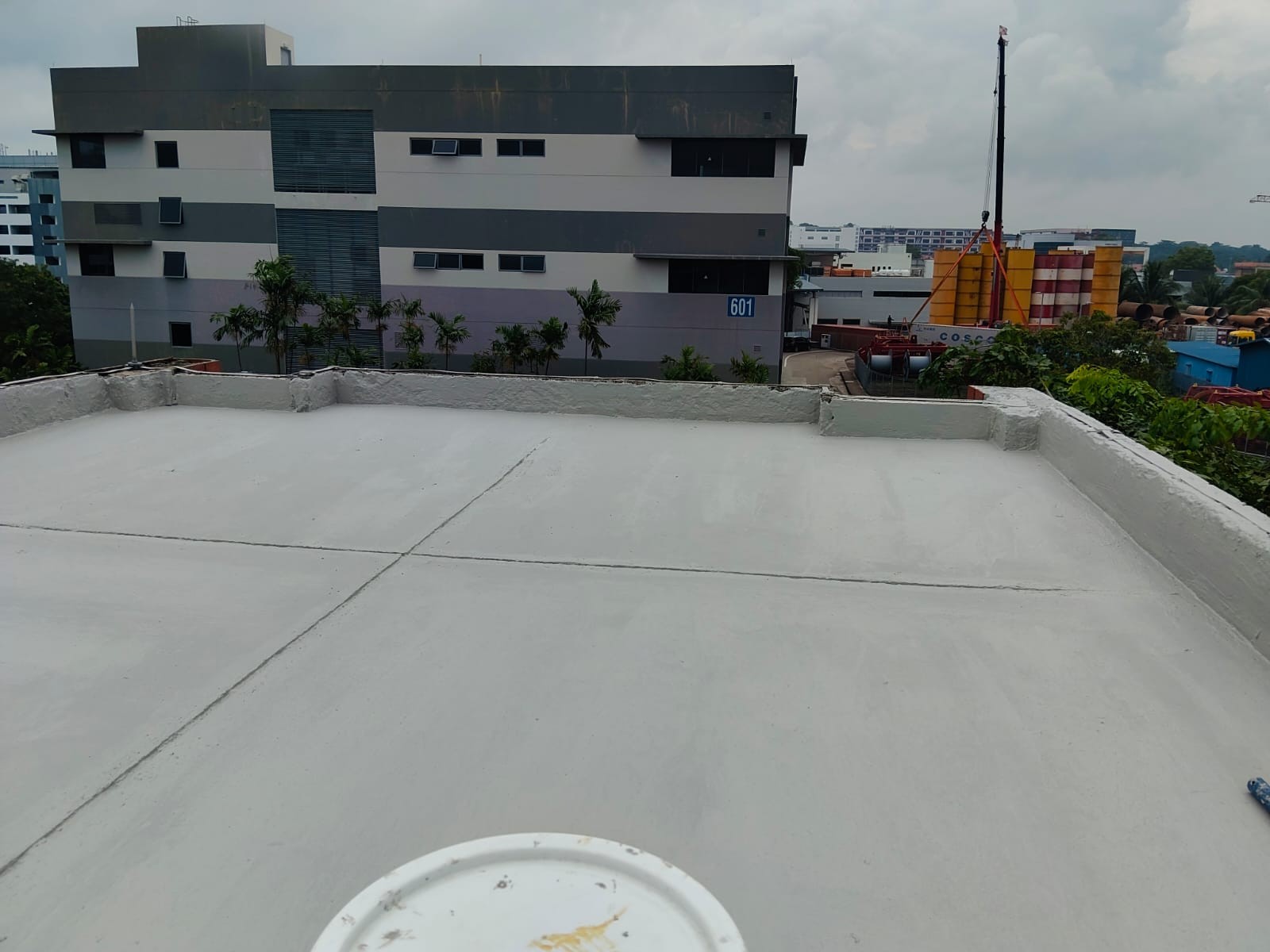

1. Reinforced Concrete Roof
Common waterproofing failures include:
• Ageing roof membrane
• Roof cracks
• Micro cracks
• Poor drainage
• Ponding water
• Construction joint failure
• Waterproof coating deterioration
• Poor workmanship during previous repairs

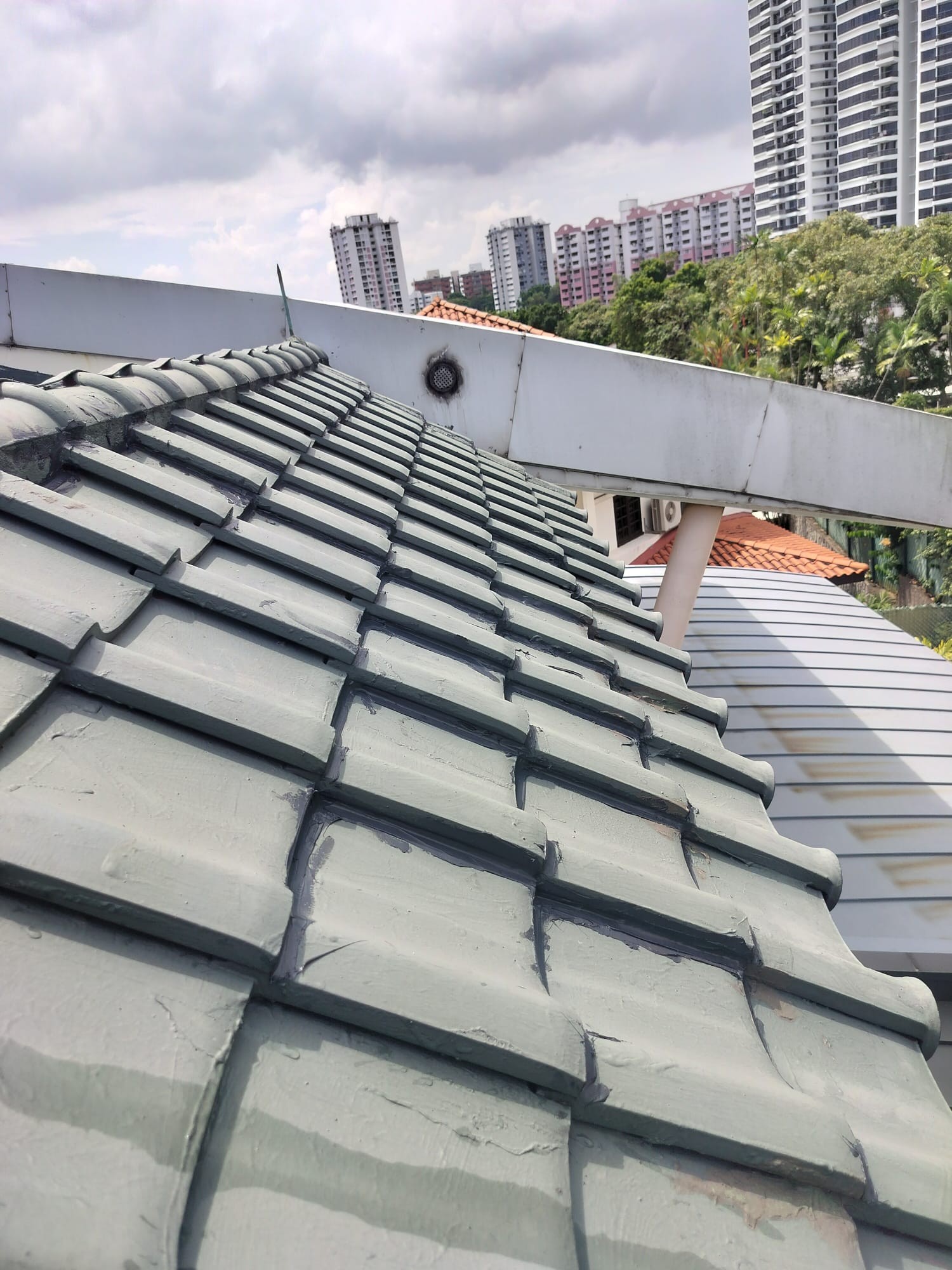

2. Clay Roof Tile Roof
Typical failures include:
• Broken roof tiles
• Loose ridge caps
• Damaged valleys
• Failed underlay membrane
• Missing mortar
• Flashing deterioration
• Blocked gutters

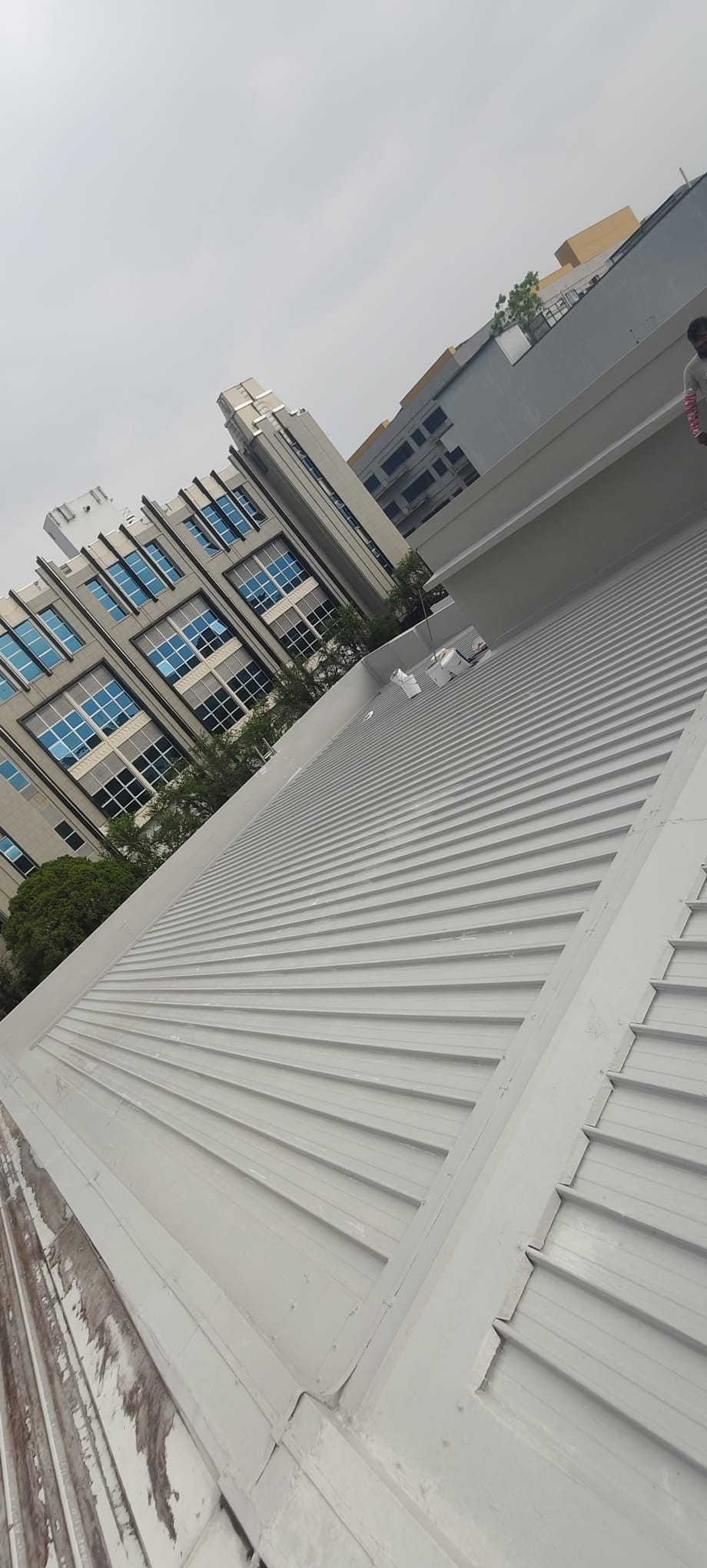

3. Metal Roof
Common causes include:
• Roof torn around screw holes
• Loose fasteners
• Corrosion
• Failed rubber washers
• Lap joint separation
• Thermal expansion movement
• Seal damage
• Air vent leak
• Worn sealants

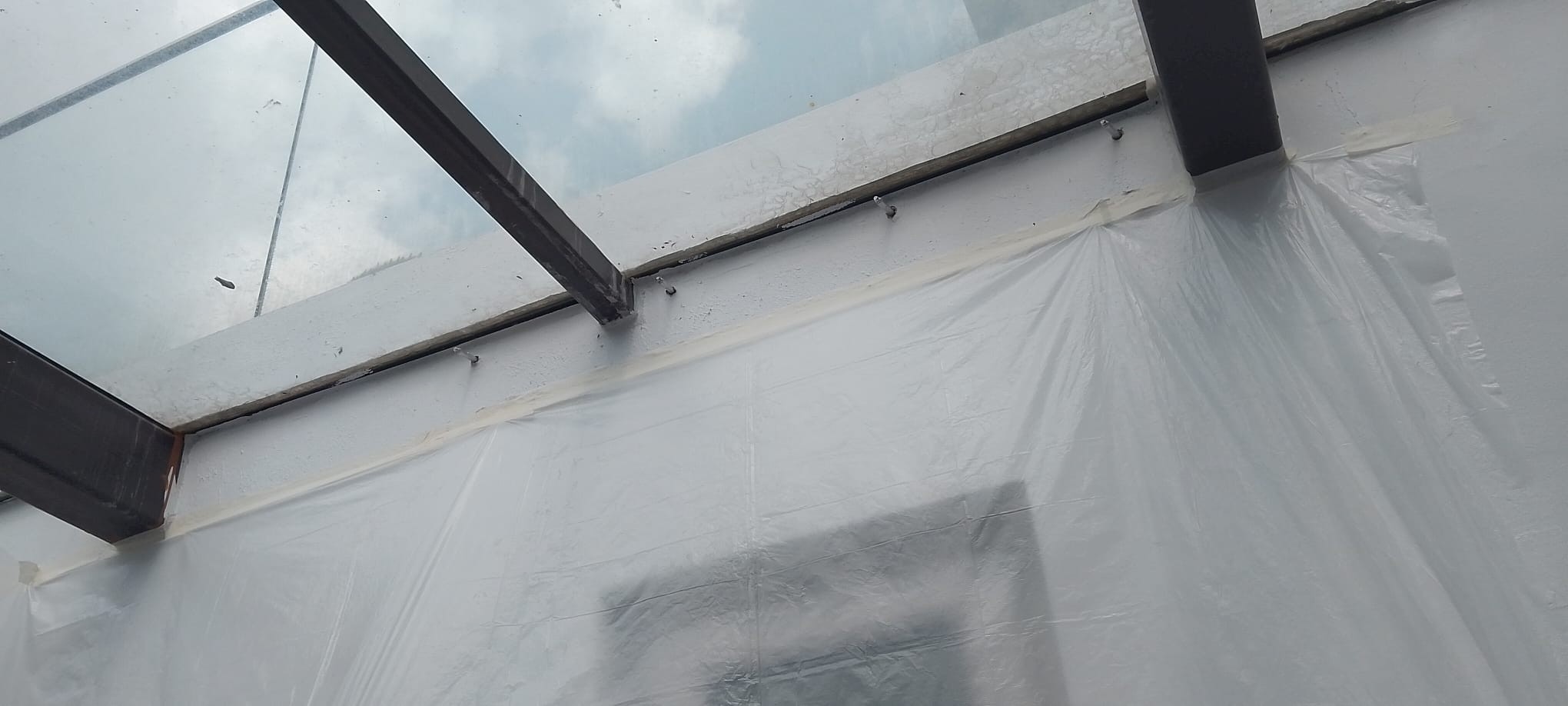

4. Glass Roof and Skylights
Frequent waterproofing failures include:
• Silicone deterioration
• Gasket ageing
• Frame movement
• Poor installation
• Failed perimeter sealants
• Drainage blockage around frames
Causes of Roof Waterproofing Failure
Roof waterproofing systems are designed to protect buildings from rainwater seepage and roof leaks, but continuous exposure to Singapore’s harsh tropical climate, ageing materials, and poor installation can eventually cause waterproofing failure. Understanding the common causes helps homeowners identify problems early and carry out timely repairs before extensive damage occurs.
1. Heat Expansion and Thermal Movement
Singapore’s intense sunlight and frequent heavy rain cause roofing materials to expand and contract daily. This continuous heat expansion gradually weakens roof membranes, sealants, flashing, and construction joints, leading to roof cracks, micro cracks, and seal damage that allow water to penetrate the roof structure.
2. Ageing Roof Waterproofing Membrane
Over time, prolonged exposure to UV rays, heavy rainfall, humidity, and weathering causes waterproofing membranes to lose their flexibility and durability. As the membrane ages, it may crack, blister, peel, or separate from the roof surface, allowing water to seep into the concrete slab and cause roof leaks, wall seepage, and ceiling damage.
3. Poor Workmanship
Even high-quality waterproofing materials can fail if they are installed incorrectly. Inadequate surface preparation, uneven waterproof coating, poor crack treatment, weak detailing around roof penetrations, or improper installation of flashing and joints can significantly reduce the effectiveness of the waterproofing system and lead to premature leakage.
4. Blocked Roof Drainage System
Blocked gutters, roof drains, and rainwater outlets prevent water from flowing off the roof efficiently. The resulting ponding water increases pressure on the waterproofing membrane, forcing moisture through small defects and micro cracks, which eventually develop into serious roof waterproofing leaks if not addressed.
5. Structural Movement and Building Settlement
Buildings naturally experience slight movement due to settlement, temperature changes, and structural loading. These movements can create micro cracks, construction joint separation, and gaps within the concrete that allow hidden water ingress. Because water can travel considerable distances through concrete slabs before becoming visible, professional leak detection is often required to accurately identify the true sources of water leakage before selecting the appropriate waterproofing repair solution.

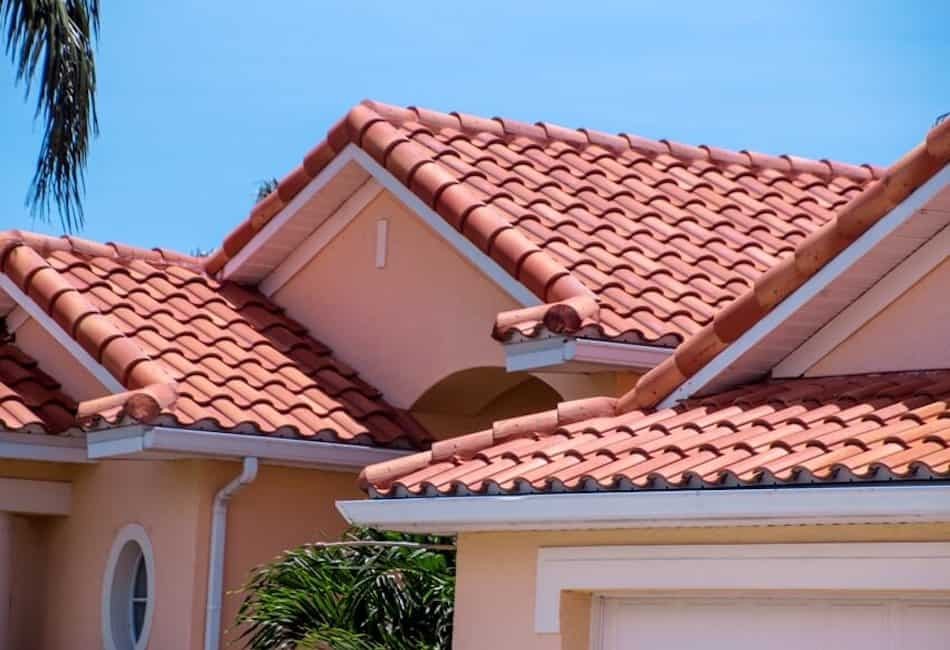

Warning Signs Your Roof Is Already Leaking
Roof leaks seldom start with water dripping from the ceiling. In most cases, roof waterproofing failure develops gradually as rainwater penetrates through roof cracks, micro cracks, deteriorated roof membranes, damaged flashing, or sealants weakened by heat expansion. As moisture spreads through the concrete slab, homeowners often notice subtle warning signs long before a major leak occurs. Identifying these symptoms early allows timely repairs, preventing costly structural damage and extensive interior restoration.
1. Brown Ceiling Stains or Discoloured Wall Patches
One of the earliest and most noticeable signs of a roof leak is the appearance of brown, yellow, or dark stains on ceilings and upper walls. These ceiling brown stain marks typically become larger after periods of heavy rainfall, indicating that rainwater seepage has entered the roof structure. Commonly found on top-floor bedroom ceilings, living rooms beneath flat roofs, staircases, roof terraces, around skylights, or where the roof slab meets external walls, these stains should never be ignored. Homeowners should photograph the affected area, monitor whether the stain enlarges after rain, and avoid simply repainting over it. A professional roof waterproofing inspection should be arranged to identify the actual source of the leak before further deterioration occurs.
2. Bubbling Paint, Peeling Plaster or Wallpaper
When moisture becomes trapped behind painted walls or ceilings, it weakens the bond between the surface and the paint, causing bubbling, blistering, peeling paint, or lifting wallpaper. This problem is frequently mistaken for poor paint quality, when it is often caused by hidden waterproofing failure. These symptoms are commonly seen along ceiling edges, upper-floor walls, staircases, external walls, around windows, and roof parapet walls. Instead of repainting the affected area, homeowners should inspect the roof after heavy rainfall and engage a waterproofing specialist to diagnose the underlying cause of water ingress before carrying out repairs.
3. Persistent Musty Smell or Mould Growth
A persistent musty smell in the room or attic is often one of the earliest signs of hidden roof leakage, even when no visible water stains are present. Moisture trapped inside ceilings, roof voids, insulation, or concrete slabs creates the perfect environment for mould and mildew growth, especially in Singapore’s warm and humid climate. This problem is commonly found in attics, false ceilings, bedrooms, store rooms, walk-in wardrobes, and air-conditioned spaces. Homeowners may also notice black or green mould patches, white fungal growth, damp timber, condensation, or an earthy odour. While improving ventilation may temporarily reduce the smell, mould will continue returning unless the roof leak is professionally diagnosed and repaired.
4. Water Dripping During or After Heavy Rain
Water dripping from the ceiling during or shortly after heavy rain is a clear indication that the roof waterproofing system has already failed. However, the location of the drip is often misleading because water can travel several metres through concrete slabs before emerging at the weakest point. This commonly occurs in top-floor bedrooms, living rooms, staircases, roof terraces, and upper-floor units. Homeowners should protect furniture and electrical appliances, collect the leaking water if necessary, and contact a waterproofing contractor immediately. Prompt inspection can prevent further structural damage and identify the true source of water ingress.
5. Damaged Flashing, Loose Roof Tiles or Roof Shingles
Roof flashing, ridge caps, roof tiles, and shingles protect vulnerable roof joints where water can easily penetrate. Over time, flashing may loosen or corrode, roof tiles may crack or become displaced, and sealants may deteriorate due to prolonged weather exposure and heat expansion. These defects are commonly found around skylights, chimneys, roof ridges, roof valleys, pipe penetrations, and air vents. Homeowners should inspect the roof from a safe location after storms and arrange prompt repairs if any roofing components appear damaged, loose, or missing.
6. Roof Cracks and Micro Cracks
Small roof cracks and micro cracks may seem harmless, but they often become the first entry point for rainwater. Continuous thermal movement, structural settlement, and ageing materials gradually enlarge these cracks, allowing moisture to penetrate the concrete roof slab. They are commonly found on reinforced concrete roofs, roof terraces, balcony roofs, parapet walls, and expansion joints. Instead of applying temporary fillers or sealants, homeowners should have the cracks professionally assessed to determine whether repairs such as PU Injection grouting or waterproof membrane restoration are required.
7. Blocked Gutters, Roof Drains or Ponding Water
A properly functioning roof drainage system is essential for preventing water accumulation. When gutters, roof drains, or rainwater outlets become blocked by leaves, dirt, or debris, water begins to pond on the roof surface. This increases pressure on the waterproofing membrane and forces moisture through existing weak points and micro cracks, significantly increasing the risk of leakage. Flat roofs, roof terraces, gutters, and drainage outlets should be inspected and cleaned regularly, particularly before Singapore’s monsoon seasons, to prevent unnecessary waterproofing failures.
8. Rust Stains, Concrete Spalling or Falling Ceiling Plaster
Long-term water penetration can corrode the reinforcing steel embedded within reinforced concrete roofs. As the steel rusts and expands, it causes the surrounding concrete to crack, spall, or detach from the ceiling. Homeowners may notice rust stains, loose concrete, exposed reinforcement bars, or sections of ceiling plaster falling away. These conditions commonly occur on concrete ceilings, roof slabs, beams, balconies, and covered car porches. Because deteriorating concrete may become a safety hazard, immediate inspection by a qualified waterproofing contractor is strongly recommended.
Recommended and Most Appropriate Repair Method, PU Injection Grouting
In the past, many homeowners believed that repairing a leaking roof required extensive hacking, removal of finishes, or complete roof replacement. While these approaches may still be necessary in cases of severe structural deterioration, advances in waterproofing technology have introduced several non-hacking waterproofing methods that are faster, less disruptive, and often more cost-effective.
The appropriate repair method depends on the type of roof, the condition of the existing waterproofing system, the extent of water ingress, and the underlying cause of the leak. An experienced waterproofing specialist will first conduct a thorough inspection before recommending the most suitable solution.
PU Injection grouting has become one of the most effective and widely used solutions for repairing active roof leaks in reinforced concrete structures without unnecessary hacking. It is particularly suitable for sealing roof cracks, micro cracks, construction joints, honeycombs, and other hidden pathways where water penetrates the concrete.
During the repair process, small injection ports are strategically installed along the identified leak path. Specialised polyurethane resin is then injected under controlled pressure into the crack or void. The resin travels deep into the affected area, where it reacts to form a durable waterproof barrier that blocks water ingress from within the concrete.
Depending on the site conditions, contractors may use hydrophilic polyurethane, hydrophobic polyurethane, or a combination of both. Hydrophobic polyurethane is often used to stop active flowing water quickly, while hydrophilic polyurethane expands upon contact with moisture to provide a flexible, long-term seal against recurring seepage.
Key Benefits of PU Injection Grouting
• Repairs leaks without major hacking or demolition.
• Penetrates deep into fine micro cracks and hidden voids.
• Effectively seals active water leaks and rainwater seepage.
• Accommodates minor structural movement and heat expansion.
• Minimises dust, noise, and disruption to occupants.
• Suitable for occupied homes, offices, commercial premises, and industrial facilities.
• Can often be completed much faster than conventional rebuilding methods.
• Preserves the existing roof structure while restoring its waterproofing performance.
When correctly designed and executed, it provides an efficient and durable solution for many forms of concrete roof leakage.
Not every roof leak requires complete roof replacement. In many cases, the underlying issue is localised to specific cracks, joints, or concealed pathways within the concrete.
PU Injection grouting addresses these hidden defects directly by sealing the leak from inside the structure rather than merely covering the surface. This makes it particularly effective where water has already penetrated beneath the existing waterproofing layer.
Compared with traditional hacking methods, PU Injection grouting offers several important advantages:
It is a non-invasive repair technique that preserves the existing roof structure.
It causes minimal disruption to homeowners, businesses, and occupants.
It targets the actual leak path instead of simply treating visible symptoms.
It effectively seals active water ingress caused by roof cracks, wall joint cracks, and construction joints.
The cured polyurethane remains flexible, allowing it to accommodate minor structural movement caused by daily heat expansion and contraction.
It is suitable for repairing many types of reinforced concrete structures found throughout Singapore.
When it comes to roof waterproofing failure, accurate diagnosis and professional workmanship are essential for a long-lasting repair.
At SWC Construction, every project begins with a comprehensive site inspection to identify the true source of water ingress, whether it involves roof cracks, deteriorated roof membranes, wall seepage, failed sealants, damaged flashing, or hidden rainwater seepage. Based on the findings, the team recommends the most effective non-hacking waterproofing solution, including PU Injection grouting, membrane waterproofing, crack repairs, and roof waterproof coatings.
As a BCA-registered waterproofing contractor, BizSafe Level 3 certified company, and HDB-appointed waterproofing contractor, SWC Construction has extensive experience delivering reliable waterproofing solutions for HDB flats, condominiums, landed homes, commercial buildings, and industrial facilities across Singapore. Backed by numerous positive Google reviews and a commitment to quality workmanship, the company provides durable, cost-effective waterproofing solutions that minimise disruption while protecting your property for the long term.
If you notice signs of roof leaks, wall seepage, or waterproofing failure, contact SWC Construction for a professional roof assessment. Early detection and the right repair solution can prevent further structural damage, reduce repair costs, and restore lasting peace of mind.
