Dealing with a persistent ceiling leak or bathroom ceiling leak is one of the most frustrating experiences a property owner can face. The unsightly wall brown stained mark, peeling paint, and dripping water not only ruin the aesthetics of your interior but also signal potential concrete slab damage/stain/leak issues beneath the surface. Traditionally, fixing an inter-floor leak required access to the unit directly above to hack away tiles, lay a new waterproof layer, and re-tile the area.
However, what happens when you cannot gain entry to the upper unit? In many old condo developments, private residential properties, and multi-storey commercial buildings, obtaining permission from neighbors or upper-floor tenants can be a logistical nightmare. Scheduling conflicts, disputes over liability, or unresponsive upper-unit occupants often delay repairs for months, leaving your property exposed to severe structural deterioration.
Traditional waterproofing work may involve accessing the floor above, removing floor tiles, hacking the screed and concrete substrate, locating the source of the water seepage, and installing or replacing a waterproofing system. However, this approach may not always be practical, especially in an occupied condominium, residential unit, office, commercial building or older property where the owner does not want to disturb the floor above.
Modern waterproofing technology allows qualified specialists to resolve toilet water seepage and ceiling moisture issues completely from below. By employing specialized non-hacking waterproofing method techniques, property managers and homeowners can achieve a long-lasting, watertight seal without stepping foot into the floor above.
Fortunately, there are situations where a non-hacking waterproofing method can be considered from the affected ceiling or lower-floor side. One commonly used treatment for certain types of inter-floor leak and concrete leakage is PU Injection grouting.
The important point is that not every ceiling leak has the same source. Before deciding on a waterproofing solution, the actual sources of water leakage should first be investigated. A ceiling leak could be caused by failed waterproofing, cracks in the concrete slab, a concealed pipe leak, deteriorated joints, water penetration from the bathroom above or another source that may not be directly above the visible stain.
An inter-floor leak occurs when water from one floor penetrates into the floor or ceiling area of another level.
A typical example is a bathroom ceiling leak in a condominium apartment. The bathroom on the upper floor may appear relatively normal, while the ceiling underneath develops water stains, peeling paint or dripping water.
An inter-floor leak can be one of the most difficult waterproofing problems for a property owner to resolve, particularly when the water appears through the ceiling of one property but the suspected source is located in the floor above.
This situation is common in condominiums, apartments, older residential properties and commercial buildings. A lower-floor unit may experience a ceiling leak, damp patch, peeling paint, water droplets, a wall brown stained mark or visible concrete slab damage/stain/leak. Yet when the owner investigates, the suspected source may be an upstairs bathroom, toilet, balcony, pipe or waterproofing system that cannot be accessed.
Can you waterproof a ceiling without accessing the floor above?

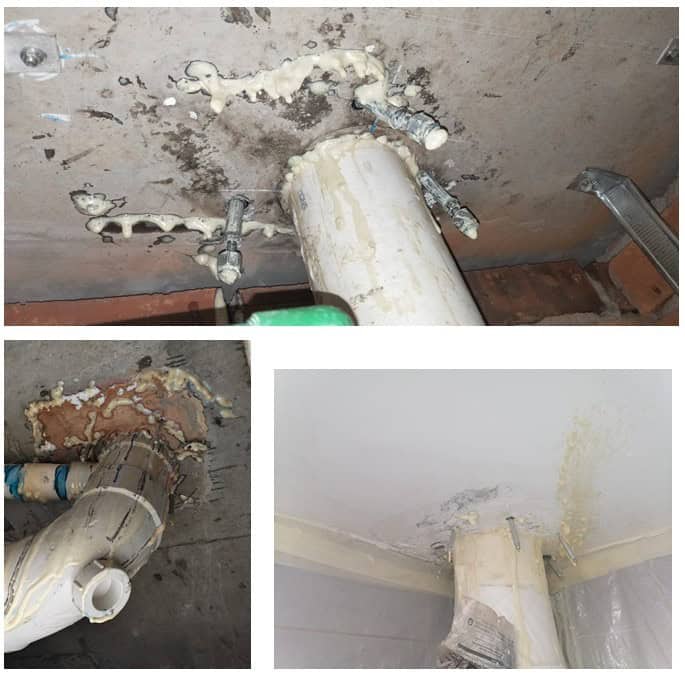

A suitable non-hacking waterproofing method, such as PU Injection grouting, may be considered when the leakage is travelling through cracks, joints or leakage pathways in the concrete slab.
However, property owners should understand an important limitation. Treating the ceiling from below does not automatically repair the original source of an inter-floor leak. If the actual problem is a failed waterproofing membrane, damaged bathroom floor, defective drainage system or concealed pipe leak located above, treating the ceiling alone may not eliminate the source.
Where access to the upper floor is available, investigating and repairing the source of the leakage from the upper side is generally the more direct approach. Where access is unavailable, ceiling-side treatment may provide an alternative for suitable conditions.
The correct approach therefore depends on identifying the sources of water leakage and understanding how water is travelling through the building.
Understand the Root Sources of Water leakage
A ceiling leak generally occurs when water finds a pathway through the building structure and eventually appears on the ceiling below. Water does not necessarily travel in a straight line.
As water travels down, it dissolves mineral salts inside the slab. When this solution reaches the air at your ceiling surface, evaporation leaves behind calcium deposits (efflorescence) alongside a dark, rusty wall brown stained mark. If left unchecked, this moisture corrodes internal steel reinforcement bars, causing spalling concrete and severe structural damage.
For example, water from a bathroom or balcony above may enter through a crack or failed waterproofing area and travel horizontally through the concrete slab before appearing several metres away from the original entry point. This is why simply treating the location of the visible ceiling leak may not always solve the underlying problem.
Common causes include:
1. Waterproofing Membrane Worn Out:
Over time, the protective waterproofing membrane installed beneath upper-floor tiles degrades due to age, chemical wear from cleaning agents, and constant moisture exposure. Once this barrier experiences waterproofing failure, water migrates directly into the underlying concrete substrate.
2. Thermal Stress and Structural Movement:
Concrete continuously reacts to ambient temperatures. The repetitive cycle of hot/cold expansion creates dynamic tension within structures. This phenomenon causes sealant worn off due to heat expansion, leading to micro cracks and concrete grout hairline crack formations across structural slabs.
3. Pipe and Drainage Deficiencies:
A concealed pipe leak or localized pipe leak inside the upper slab can continuously discharge water into surrounding concrete. Because these pipes are concealed, the leak often manifests as slow, steady water seepage through the lower ceiling slab.
4. Poor Workmanship and Installation Flaws:
Substandard original construction—such as improper concrete compaction, incorrect membrane overlap, or poor sealant application—leaves vulnerable pockets. Over time, these pockets turn into active pathways for a waterproofing leak.
Older buildings can be more susceptible to these problems because building materials naturally deteriorate over time. In Singapore, repeated weather changes and hot/cold expansion can contribute to movement in building materials, joints, sealants and coatings.

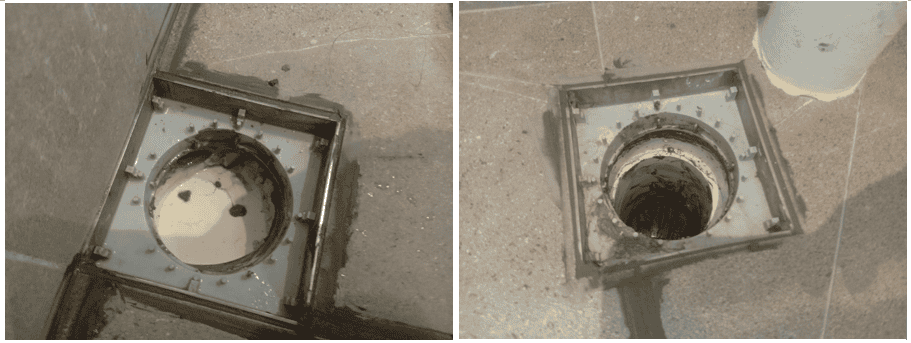

The Limitations of Solving an Inter-Floor Leak Without Access to the Floor Above
While PU Injection grouting can be a useful non-hacking waterproofing method for selected inter-floor leakage conditions, property owners should also understand its limitations when the upper floor cannot be accessed. An inter-floor leak originates from a water source somewhere within or above the floor assembly, and treating only from the lower ceiling means the contractor may be addressing the water pathway rather than physically repairing the original waterproofing system above. This distinction is particularly important for old condominiums, residential properties and commercial buildings where the bathroom waterproofing membrane may already have deteriorated over a large area. In such situations, ceiling-side injection may help control a particular leakage pathway, but it cannot replace a failed waterproofing membrane or repair a defective concealed pipe. Other waterproofing specialists similarly note that PU injection is not a universal solution where an entire bathroom membrane has failed or where the actual defect is plumbing-related.
1. PU Material Can Over-Expand or Travel into Unintended Areas
One important consideration with PU Injection is that polyurethane grout is designed to react with moisture and expand into cracks, voids and leakage pathways. Depending on the product, moisture condition, injection pressure and surrounding voids, the material can expand significantly. This is why injection must be carefully controlled and carried out by experienced technicians. If excessive material is injected, or if the actual leakage pathway is not properly understood, PU may migrate into unintended voids or areas within the floor structure. In a bathroom, this can create concerns around floor traps, pipe penetrations, tile grout lines or other concealed spaces. Industry guidance also highlights the need to take care around services and utilities when carrying out injection works, including avoiding excessive pressure or uncontrolled injection that could cause damage or blockage.
For this reason, PU Injection should not simply be approached as a matter of “injecting more material until the water stops”. The injection location, pressure, quantity, resin characteristics and likely water pathway should be considered carefully. An experienced waterproofing contractor should control the injection process and monitor where the PU is travelling rather than relying on excessive injection.
2. The Actual Waterproofing Membrane Above May Remain Defective
Another major limitation is that ceiling-side treatment does not physically restore the waterproofing membrane on the floor above.
For example, if an upstairs bathroom has an old waterproofing membrane worn out across the shower area, water may continue entering the floor assembly every time the bathroom is used. PU Injection from the ceiling below may seal one or more identified water pathways through the concrete slab, but the defective membrane remains above.
This means the original source of water may still exist.
The water may subsequently find another crack, joint, pipe penetration or weak point and appear at a different location. This is one reason why a professional diagnosis is important before recommending PU Injection as the sole waterproofing solution. PU injection is generally most appropriate when the leakage pathway is associated with a suitable concrete crack, joint or void, rather than being used as a blanket replacement for a failed wet-area waterproofing system.
3. The Upper-Floor Aesthetic and Waterproofing Condition Cannot Be Properly Assessed
When the floor above cannot be accessed, the contractor may not be able to properly inspect the condition of the bathroom tiles, tile grout, floor trap, sanitary fittings, pipe penetrations, wall-to-floor joints and existing waterproofing condition.
This creates an important limitation.
There may be visible deterioration on the upper floor that cannot be identified from the ceiling below. For example, the upper bathroom may have deteriorated grout, cracked tiles, failed sealant, ponding water or damaged joints. If these conditions are not inspected, the repair may focus only on the symptom appearing below.
There is also an aesthetic concern. If the upper bathroom eventually requires proper waterproofing rectification, hacking and reinstatement may still become necessary later. The owner may then have to deal with two separate stages of repair rather than resolving the waterproofing system comprehensively at the beginning.
4. Fully Cured PU Is Not Simply Reversible
Once polyurethane grout has reacted and fully cured inside a crack or void, it becomes a solid cured material within the treated area. It is therefore not comparable to a temporary liquid that can simply be flushed out or removed later.
This is an important consideration before injection.
If PU has migrated into an unintended void, around a service or into an area that subsequently needs to be opened, removing the cured material can be difficult and may require mechanical removal or hacking of the affected area.
The exact properties depend on the PU product used. Some polyurethane injection products cure into flexible closed-cell foam, while other formulations have different characteristics.
Therefore, “non-hacking” does not mean “fully reversible.” Once the material has cured, future access to the treated area can become more complicated.
5. It May Mask a Larger Waterproofing Failure
A visible ceiling leak may sometimes be only one symptom of a much larger problem.
For example, an upstairs toilet may have:
- Worn-out waterproofing membrane.
- Deteriorated tile grout.
- Damaged floor trap area.
- Cracked wall-to-floor joints.
- Failed sealant.
- Concealed pipe leakage.
- Poor floor gradient causing water ponding.
- Multiple leakage pathways.
If only one concrete crack is injected from below, the immediate visible leakage may reduce, but other pathways may remain.
This can create a situation where the property owner believes the waterproofing problem has been completely resolved when the underlying wet-area defect remains.
6. A Concealed Pipe Leak Cannot Be Repaired by PU Injection Alone
An inter-floor leak should not automatically be assumed to be a waterproofing failure.
A concealed pipe leak can release water into the floor structure and eventually cause a ceiling leak below.
If the source is a defective water supply or drainage pipe, PU Injection into the surrounding concrete does not replace or repair the pipe.
The plumbing source must first be identified and repaired.
This is why leakage investigation should consider both waterproofing and plumbing-related causes.
7. Existing Water Pressure Can Affect the Repair
Where water is continuously entering from above, the concrete may remain saturated.
The pressure and volume of water, condition of the crack, moisture level and type of PU resin can all affect the injection process.
Professional injection should therefore be controlled rather than performed indiscriminately.
The selection of grout and application method should take into account factors such as water ingress, substrate condition, temperature, movement and nearby utilities.
The term “non-hacking waterproofing” can sometimes create the impression that the upper bathroom never needs attention again.
That is not the case, If the actual problem is a widespread failed waterproofing membrane, damaged floor finishes or defective drainage, a more comprehensive upper-floor repair may eventually be required.
A no-hacking treatment is therefore best viewed as a targeted alternative for suitable conditions rather than a universal replacement for conventional waterproofing reconstruction.
PU Injection can still be a practical and useful solution for the right leakage condition. The important consideration is whether the leakage is suitable for injection treatment. PU Injection can be particularly useful where the investigation indicates that water is travelling through identifiable concrete cracks, joints, pipe surroundings or specific voids within the slab.
PU Injection is a good option as a method used for bathroom, ceiling and inter-floor leakage conditions, including injection into reinforced concrete slabs from the lower unit.
The key is not simply choosing between “hacking” and “no hacking”.
The more important question is:
Where is the water coming from, how is it travelling, and what part of the waterproofing system has actually failed?
If the upper floor is accessible and the waterproofing membrane has clearly failed over a large area, repairing the source may be the more comprehensive approach.
If the upper floor cannot be accessed and the leakage is associated with a suitable concrete leakage pathway, PU Injection may provide a practical alternative that reduces disruption.
A professional waterproofing contractor should not recommend PU Injection simply because the upper floor is inaccessible.
The lack of access is a practical constraint, but it does not change the physical source of the leakage.
The contractor should assess what can reasonably be determined from the affected ceiling, including the leakage pattern, concrete condition, location of cracks, water activity and possible relationship to the wet area above.
The right repair is ultimately the one that addresses the actual defect while considering access, disruption, aesthetics, long-term maintenance and the condition of the building.
There is no single waterproofing method that is suitable for every building.
Depending on the inspection findings, solutions may include PU Injection grouting, joint sealing, concrete repair, surface waterproofing, membrane replacement, plumbing repair, external waterproofing or other remedial measures.
For older condominiums, landed properties and commercial buildings, the condition of the existing concrete substrate is particularly important.
If the concrete has significant deterioration, simply injecting a crack may not address the wider problem. Similarly, if the waterproofing membrane has failed across a large area, a more extensive waterproofing system may be necessary.
The repair should therefore be customised according to the actual leakage condition.
A ceiling leak does not always mean that the floor above must be hacked.
For selected inter-floor leak, concrete leakage and failed waterproofing conditions, PU Injection grouting can provide a practical non-hacking waterproofing method from the affected ceiling side.
This can be particularly useful for old condominiums, residential properties and commercial buildings where access to the upper floor is difficult or where extensive hacking would cause unnecessary disruption.
However, successful waterproofing begins with identifying the cause. Whether the problem involves micro cracks, wall cracks, wall joint cracks, concrete slab damage/stain/leak, a concealed pipe leak, seal damage, waterproofing failure or an ageing waterproofing system, the repair method should be based on the actual condition of the building.
For property owners, commercial building maintenance teams and MCST maintenance teams in Singapore, getting the leakage investigated properly can help prevent repeated repairs and unnecessary hacking.
