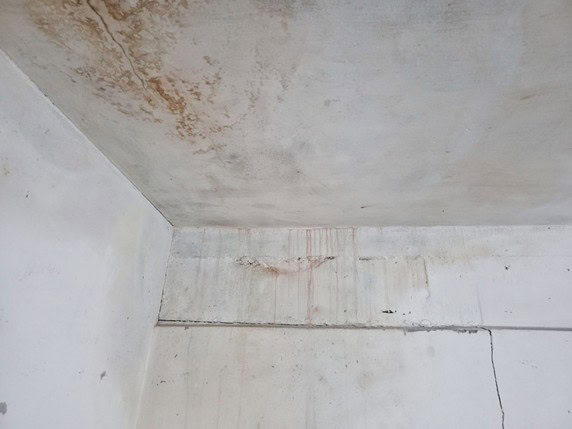

A ceiling stain can look like a minor cosmetic problem, but it may be the first visible sign of a hidden leak. Water can travel along a concrete slab, pipe, beam or wall before it appears indoors, so the mark on your ceiling may be some distance from the actual source. If the cause is not found and fixed, water damage can spread, paint may blister or peel, ceiling mould may develop, and a small repair can become more disruptive.
For homeowners, landlords, property managers and MCST maintenance teams in Singapore, the practical first step is to work out whether the stain is old or still getting wet, then trace the water to its source. The right repair depends on whether the problem comes from plumbing, a bathroom above, an exposed roof or balcony, a joint, or a failed waterproofing system.
Causes of Ceiling Stains and Water Damage?
A brown patch on the ceiling does not identify the cause by itself. Water follows paths of least resistance, and it can move sideways through a concrete substrate before showing up at a joint or crack.
To resolve water damage effectively, you must first narrow down the root cause.
Reinforced concrete structures appear solid, but concrete is inherently porous and susceptible to dynamic thermal movements, structural stresses, and chemical degradation over time.
Some common factors:
1. Structural Aging and Microcracks
Buildings naturally expand and contract due to Singapore’s tropical climate, daily temperature fluctuations, and structural settling. Over time, concrete grouting expansion and stress produce tiny fissures known as microcracks or concrete grout hairline crack networks throughout the slab matrix. While individually microscopic, these micro cracks create interconnected channels that draw water downward via capillary action.
2. Failure of Waterproofing Membranes
Bathrooms, kitchens, balconies, and wet areas in residential units rely on underlying protective layers beneath tiled finishes. With continuous exposure to water, harsh household cleaning agents, and thermal cycling, an aging waterproofing membrane worn out over 10 to 15 years loses its elasticity and structural integrity. Once a waterproofing failure occurs on the upper floor, any standing water on the tile joints penetrates directly into the reinforced concrete slab below.
3. Concealed Pipe Leaks and Plumbing Breaches
Plumbing infrastructures embedded inside structural walls and floor slabs can fail without immediate warning. A concealed pipe leak or slow pipe leak joints create constant pressure within the concrete substrate. Because these pipes are fully concealed within structural elements, the leaking water saturates the surrounding concrete before escaping through the point of least resistance—typically your ceiling slab.
4. Sealant Deterioration and Joint Movement
Perimeter joints, movement joints, and wall joint cracks rely on specialized elastomeric sealants to maintain a watertight barrier. However, outdoor exposure causes sealant worn off due to heat expansion and UV degradation. Once seal damage takes effect along exterior wall joints or wet area perimeters, water seeps directly into vertical wall construction joints, resulting in prominent wall brown stained mark patterns and damp patches near ceiling edges.
5. Inter-Floor Leakage
In multi-story residential developments and commercial buildings, an inter-floor leak is the primary culprit behind a sudden bathroom ceiling leak or toilet water seepage. The upper unit’s floor functions as the lower unit’s structural ceiling. When waterproofing systems in the upper bathroom or utility yard wear down, water migrates downward, creating a persistent concrete leak and unsightly ceiling mould growth directly overhead in the lower unit.
Steps-by-steps to narrow down the cause
A ceiling stain shows where water has appeared, but it does not always reveal where the water entered. It may have travelled along a concrete slab, pipe or joint before becoming visible. These checks can help you collect useful information for a contractor or building manager.
1.Note exactly where the stain appears
Look at the stain in relation to the rooms and features above it. Is it below an upstairs bathroom, toilet, kitchen, balcony or air-conditioning area? Is it close to an external wall, window, roof or visible pipe route? Write down what is directly above and around the mark.
This can help identify areas to inspect first. For example, a stain below a bathroom makes the wet area worth checking, while a mark near an external wall may be related to rainwater entry. However, water can travel sideways through a concrete slab or along a pipe before it reaches your ceiling. The stain’s location is a clue, not proof of the source.
2. Observe the stain’s appearance and condition
Check whether the area is damp to the touch, actively dripping, or visibly changing. Look for soft or bubbling paint, peeling plaster, cracks, a growing water ring, mould or a musty smell. These signs suggest that moisture is present or has been present recently.
A dry yellow or brown mark may be leftover discolouration from an old leak. But a dry surface does not rule out an intermittent leak: the water may appear only after a shower, heavy rain or another specific activity. Avoid scraping or pressing a damaged ceiling, especially if it looks swollen or fragile.
3. Mark the stain and keep a photo record
Lightly mark the outer edge of the stain with a pencil and write down the date. Take a clear photo from the same position each time, ideally with a date noted separately. Repeat the photo after a few days, or sooner if the stain changes.
Compare the pictures for growth, darker patches, new edges or fresh droplets. This record can help you distinguish a stable old mark from one that is spreading. It is also useful when explaining the problem to your neighbour, building management or a contractor, particularly if the leak starts and stops.
4. Check the surrounding area for related signs
Look at the ceiling around the stain and the nearby walls, windows and doors. Note any damp patches, cracks, peeling paint, mould or a wall brown stained mark. If the stain is near an exposed pipe or plumbing fixture, look from a safe and accessible position for visible drips, loose connections or damp surfaces.
Do not cut into the ceiling, remove fittings, drill into a slab or attempt to inspect concealed pipes. These actions can create additional damage or expose you to electrical and other hazards. A concealed pipe leak may need professional checks to confirm.
5. Keep track of when the stain changes
Write down what was happening before the stain became darker, wetter or larger. Did it worsen after someone showered, flushed a toilet or used a washing machine upstairs? Did it appear after heavy rain? Does it seem to return when an air-conditioner is running?
Patterns can help narrow down the likely cause. For instance, a change after bathroom use may point to a plumbing or waterproofing issue, while a change after rain may suggest water entry through a roof, balcony, window or external wall. These patterns still need to be checked: water can take time to travel through the concrete slab, so the stain may show up well after the water entered.
6. Protect belongings
Move furniture and electrical items away from the affected area. If water is near a light fitting, fan, switch or wiring, do not touch the fitting or the wet surface. Arrange for a qualified professional to assess it.
If the ceiling is bulging, sagging or actively dripping, keep people away from the area and contact building management or a contractor promptly. Do not stand beneath a visibly swollen ceiling or try to puncture it to release water.
7. Inform the upstairs neighbour and building management
If you live in a condominium or HDB flat, notify the upstairs neighbour and the relevant building management team or town council where appropriate. Share your photos, dates and notes about when the stain changes. Ask whether there has been recent bathroom, plumbing, façade or renovation work.
Keep the conversation factual and focus on arranging an inspection. A ceiling stain does not by itself establish where the leak started or who is responsible. For an inter-floor leak, access to both units can help the contractor compare the damaged ceiling with the wet areas, pipes and joints above.
8. Arrange a professional inspection if the source is uncertain
If the stain keeps returning, expands, or has no obvious cause, arrange an inspection by a suitable waterproofing contractor or plumbing professional. Explain what you have observed and provide your photo record. Depending on the suspected source, the inspection may include checks of plumbing, bathroom or balcony waterproofing, joints, cracks or areas exposed to rain.
A professional can investigate concealed leakage and recommend a repair based on the likely source. This matters because repainting or patching the ceiling may hide the mark temporarily without stopping water seepage. The leak should be addressed first; ceiling repairs can follow once the affected area is ready to be restored.
What should you do when the damage comes from the unit above?
Contact the upstairs owner or occupier and building management as soon as practical. Keep the discussion factual: provide dated photographs, explain when the stain changes, and ask for access to inspect likely wet areas. In a condominium, the management office or MCST can help coordinate communication and determine which parts of the building or unit require investigation. In an HDB block, contact the neighbour and the relevant HDB or town council channel if the issue continues or access is difficult.
The lower unit owner should document the ceiling stain, paint damage, mould and any affected belongings. Keep records of communications and inspections. Avoid repainting over a wet or changing stain, because the finish may fail again and the evidence of the leak can become harder to assess.
Where the source is in the upper unit, treating only the ceiling below is unlikely to provide a lasting solution. The upper unit may need access for an inspection, plumbing checks or waterproofing repair. A ceiling patch can restore the appearance later, but the leak itself must be stopped first. Building rules and responsibility can vary by property type and circumstances, so owners should coordinate with the relevant management body and obtain advice where needed.
Why is access to the upper unit often important?
A leak visible on a lower ceiling can originate in the unit above, so access to the upper unit is often essential for an effective and long-lasting solution. The source may be under bathroom tiles, beside a floor trap, around a concealed pipe, at a balcony threshold or within a wall joint. The lower ceiling shows where water emerged, not necessarily where it entered.
When both units cooperate, the contractor can compare the stain with the wet areas above, inspect plumbing and waterproofing details, and choose a repair that matches the cause. If a membrane has failed across a bathroom floor, a lower-side injection could reduce the symptoms while the broader failure remains. In that situation, access to the upper unit may be needed to restore the waterproofing system properly.
Where access is difficult, share the inspection findings with the neighbour and management team and agree on a reasonable inspection plan. For MCST and commercial building teams, coordinating access, documenting the sequence of events and informing affected occupants can reduce delays and help keep repair decisions clear.
Preventing stains from returning
Inspect bathrooms, balconies, roofs, windows and exposed joints periodically, especially after renovation or repair work. Replace deteriorated sealant when appropriate, attend to cracked grout and damaged finishes, and investigate recurring damp marks early. Keep dated records of leaks and repairs so future contractors can see what has already been tried.
Most of all, treat a ceiling stain as a symptom that deserves investigation. The right repair begins with identifying whether the problem is plumbing, external water entry, slab cracking or failed waterproofing. Once the source is stopped and the affected materials are properly repaired, the ceiling can be restored with a much better chance of lasting.
How Is Water Damage on a Ceiling Repaired?
Repairing ceiling water damage requires a strategic, cause-driven process rather than a quick cosmetic cover-up. Painting over a ceiling stain without stopping the water path only hides the issue temporarily while concrete slab damage, structural rebar corrosion, and toxic ceiling mould continue unabated behind the surface.
A qualified waterproofing contractor begins with a systematic investigation: gathering leak history, conducting visual checks, utilizing moisture meters, and performing thermal leak detection to trace how moisture moves through the upper floor slab, adjacent walls, or concealed plumbing routes. When water seepage stems from structural cracks, concrete grout hairline cracks, or failed waterproofing in the upper unit, selecting the right remediation strategy makes all the difference.
High-Pressure PU Injection Grouting:
When a concrete leak or inter-floor leak is identified, high-pressure Polyurethane (PU) Injection grouting stands out as the ultimate first-choice, non-hacking waterproofing solution. Rather than jumping straight to destructive floor hacking in the upper unit, PU Injection directly targets the root cause from the lower unit’s ceiling without disturbing existing tile finishes, marble floors, or living spaces above.
1. Targeted Deep-Substrate Sealing:
Technicians drill angled entry ports directly into the concrete substrate to intersect the active leak route. Liquid polyurethane is injected under high pressure deep into the concrete matrix, reaching microcracks, honeycomb voids, and wall joint cracks that surface-level sealants or coatings can never access.
2. Rapid Moisture Reactivity and Chemical Expansion:
The moment liquid PU grout contacts residual moisture inside the concrete slab, it reacts instantly, expanding 10 to 20 times its original volume into a dense, flexible, closed-cell waterproof foam. This rapid expansion displaces all trapped moisture and completely chokes off the water path from within.
3. Flexible Accommodation for Thermal Movement:
Unlike rigid cementitious grouts, cured PU foam remains permanently elastic. It comfortably absorbs ongoing concrete grouting expansion, structural vibrations, and thermal stresses without losing adhesion or cracking.
4. Maximum Cost Efficiency and Zero-Disruption:
Because PU Injection is executed cleanly and directly from the lower unit’s ceiling, property owners avoid the massive noise, dust, prolonged downtime, and heavy expense associated with traditional floor hacking and re-tiling.
In cases where an upper-floor wet area suffers from complete, widespread waterproofing failure across the entire floor matrix (beyond localized structural cracks), the contractor may recommend renewing the floor finish, properly preparing the concrete substrate, and applying a new waterproofing membrane to complement the slab injection.
