Many people assume that installing a new waterproofing membrane will solve every roof leak.
Unfortunately, waterproofing systems only perform as well as the underlying structure.
One of the biggest causes of recurring waterproofing failure is poor workmanship during previous repairs. Waterproofing membranes may have been installed incorrectly, joints may not have been properly sealed, or drainage issues may have been ignored altogether.
During the day, concrete slabs absorb intense heat and expand. At night and during rain, they contract again. This constant heat expansion creates movement within the structure, eventually leading to micro cracks, wall joint cracks, deteriorated sealants and weakened waterproofing systems.
As the waterproofing membrane ages, it becomes brittle and may eventually become a waterproofing membrane worn out, allowing moisture to penetrate beneath the surface.
Roof leak may actually originate from a nearby wall, parapet, planter box, drainage outlet or expansion joint.
Terrace roofs are flat, unlike pitched roofs that naturally shed water. This flat design makes them more prone to water accumulation. Concrete, the most common material used for terraces, is porous by nature. Over time, exposure to rain, sunlight, and temperature fluctuations causes it to expand and contract, creating tiny openings that allow water to seep through.
Because water doesn’t always enter directly above the damp patch you see inside, diagnosing terrace leaks can be tricky. Moisture often travels through pores, cracks, and reinforcement gaps before surfacing in unexpected places. This is why terrace roof leakage is considered one of the most challenging maintenance problems in buildings.
Types of Terrace Roofs in Singapore
Terrace roofs are a common architectural feature in many Singapore properties, particularly landed houses, condominiums, commercial buildings and rooftop terraces. While they provide valuable outdoor living space and additional usable areas, terrace roofs are constantly exposed to Singapore’s tropical climate. Intense sunlight, heavy rainfall, high humidity and daily temperature fluctuations can gradually weaken waterproofing systems if they are not properly maintained.
Understanding the different types of terrace roof construction helps property owners recognise why certain waterproofing problems occur and why each roof may require a different repair approach.

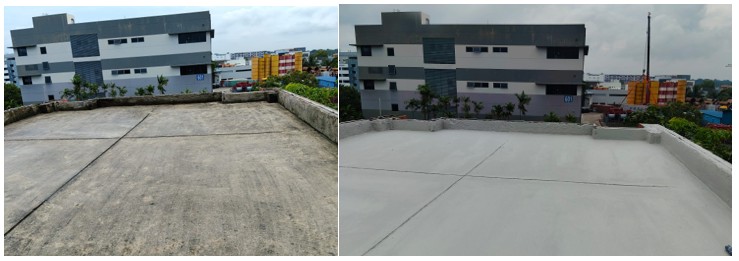

Reinforced Concrete (RC) Terrace Roof
The most common terrace roof in Singapore is the reinforced concrete (RC) slab. Found in landed homes, condominiums, HDB roof terraces and commercial developments, RC roofs are highly durable, capable of supporting heavy loads and designed to withstand Singapore’s weather conditions.
However, concrete is naturally porous. Over time, repeated hot/cold expansion and heat expansion cause the concrete slab to expand during the day and contract after rain or at night. This continuous movement can create micro cracks, wall joint cracks and concrete slab damage, allowing water to penetrate beneath the surface. If left untreated, prolonged moisture intrusion may result in concrete leaks, ceiling water seepage, rusting of reinforcement bars and unsightly wall brown stained marks inside the property.

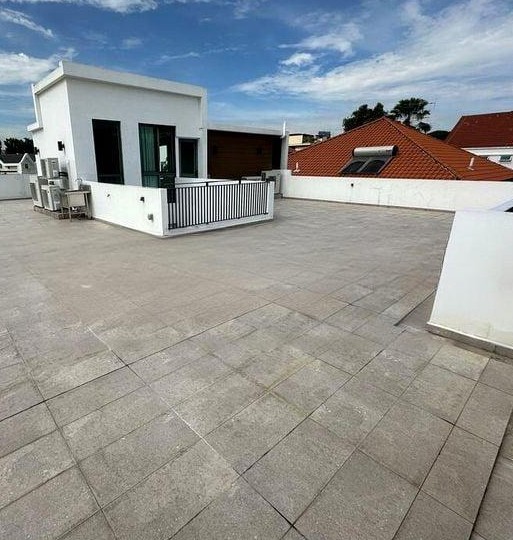

Tiled Terrace Roof
Many private residences feature terrace roofs finished with ceramic, porcelain, homogeneous or natural stone tiles. While these finishes provide an attractive and durable surface, the tiles themselves are not waterproof. The actual waterproofing protection comes from the membrane installed beneath the tile screed.
As the property ages, joint/grout worn out, grout hairline cracks and grout expansion caused by moisture movement and thermal stress allow rainwater to seep below the tiles. Property owners often mistake damaged grout as the primary cause of leakage, when in reality the underlying waterproofing membrane may have worn out or become detached from the concrete substrate.
Some modern homes and commercial buildings use exposed concrete terraces protected by specialised waterproof coatings or clear penetrative waterproofing treatments instead of tiles. These systems create a seamless finish and are generally easier to inspect and maintain because cracks and defects are visible on the surface.
However, exposure to constant UV radiation, standing water and heavy rainfall can gradually deteriorate the protective coating. Without regular maintenance, seal damage, surface cracks and waterproof coating failure may eventually allow water to penetrate into the concrete slab, resulting in persistent water seepage.

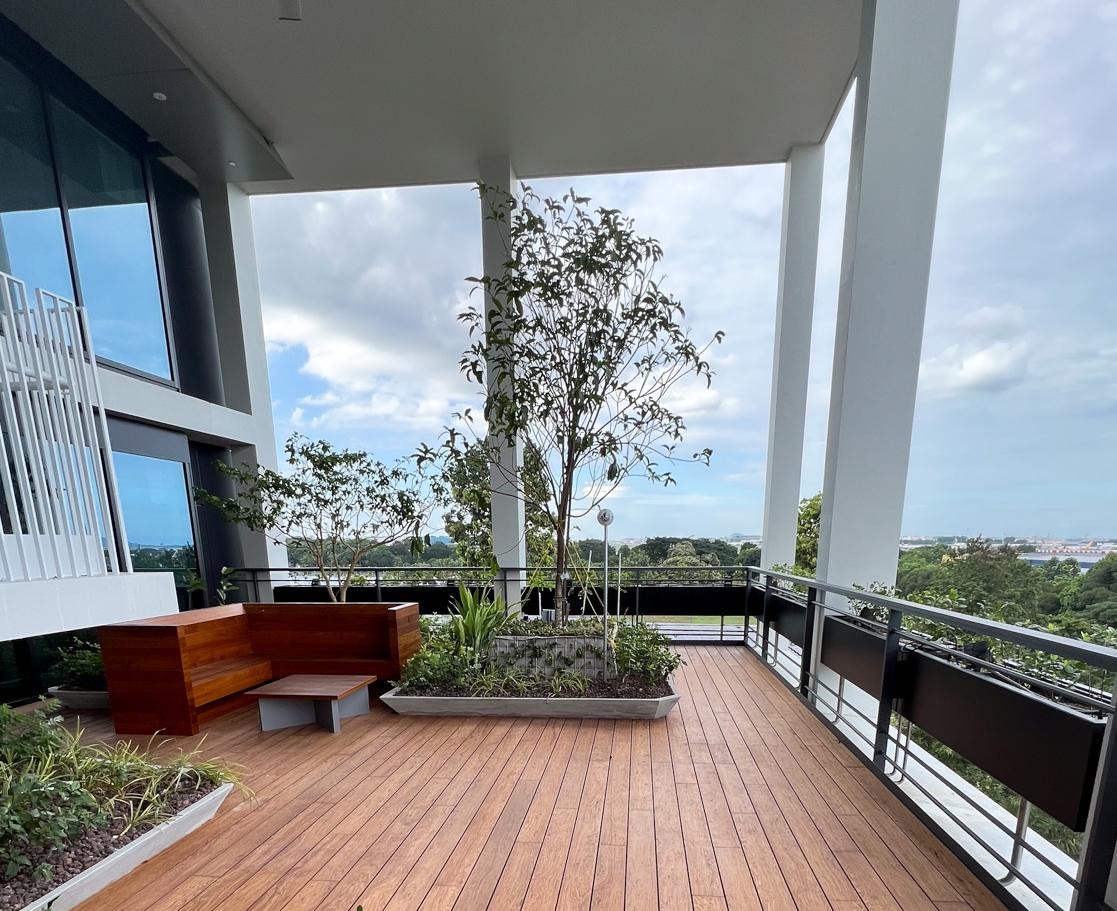

Timber Deck Terrace Roof
Luxury landed homes and rooftop gardens sometimes incorporate timber decking over the waterproofed concrete slab. Although the timber enhances aesthetics and comfort, the waterproofing membrane beneath the deck remains the primary barrier against water ingress.
Because the waterproofing layer is hidden beneath the decking system, early signs of leakage are often overlooked. Moisture may remain trapped below the deck for extended periods, making leaks difficult to detect until water stains or ceiling seepage become visible inside the building.
Professional inspection is often required to determine the actual sources of water leakage without dismantling the entire deck unnecessarily.

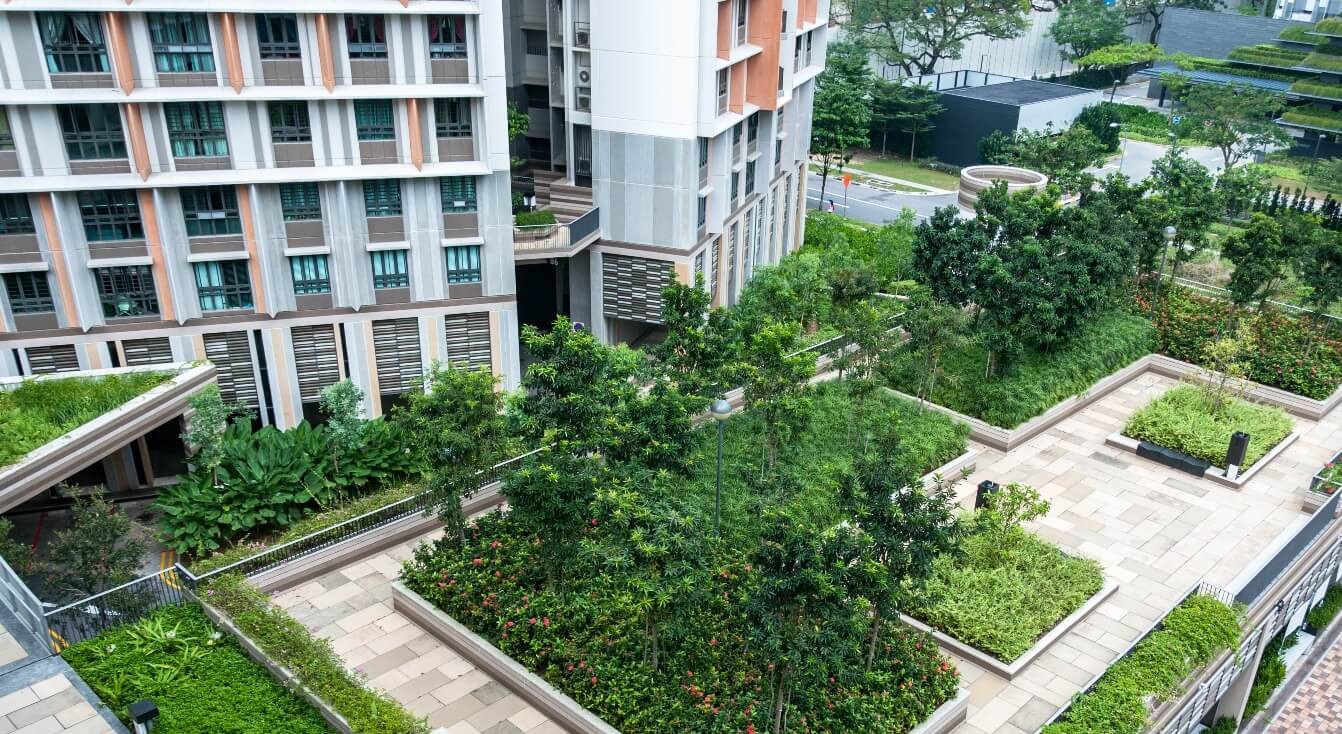

Green Roof and Rooftop Garden Terrace
Some residential and commercial developments in Singapore incorporate landscaped rooftop gardens or green roof systems. These terraces include multiple layers such as waterproofing membranes, drainage boards, filter fabrics, soil and vegetation.
While these systems improve energy efficiency and aesthetics, poor drainage, root penetration, blocked drainage outlets or an ageing waterproofing membrane can eventually result in waterproofing failure. Diagnosing leaks beneath a green roof is often more complex and requires experienced waterproofing specialists using modern diagnostic methods such as thermal leak detection before recommending the most appropriate repair solution.
Regardless of the terrace roof type, regular inspection and timely maintenance are essential. Small defects such as micro cracks, deteriorated sealants or blocked gutters can quickly develop into significant waterproofing problems if ignored. Engaging an experienced waterproofing contractor early can help identify the root cause of leakage and recommend the most suitable non-hacking waterproofing method, avoiding unnecessary demolition while extending the lifespan of the roof.

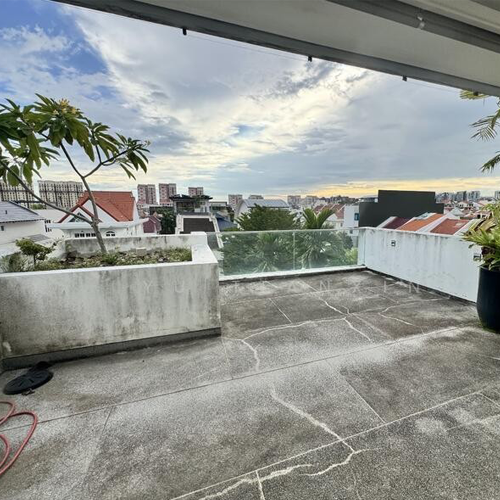

Why Your Terrace Roof Continues to Leak Even After Repairs
One of the biggest frustrations for homeowners is discovering that their terrace roof continues to leak even after spending money on waterproofing repairs. While it may seem like the previous repair has “failed,” the reality is that many waterproofing works only address the visible symptoms rather than the actual source of water ingress.
Water does not always leak directly above the area where it becomes visible. Once rainwater enters through a damaged waterproofing system, it can travel horizontally beneath tiles, screed or concrete slabs before eventually appearing inside the property. This is why a ceiling stain or wall seepage often appears several metres away from the true leak source. Simply repairing the visible crack or stained area rarely solves the underlying problem.
Many contractors focus on surface-level repairs such as applying waterproof paint over damp concrete, replacing cracked grout, or adding silicone sealant around visible joints. While these treatments may temporarily reduce water seepage, they do not stop moisture that has already penetrated beneath the terrace finishes. As trapped water continues to migrate through the concrete structure, the leakage often reappears during the next heavy rainfall.
Another common reason for recurring leakage is that the original waterproofing membrane has already deteriorated beneath the tiles or screed. Over time, waterproofing membranes naturally age due to prolonged exposure to ultraviolet (UV) rays, heavy rainfall, moisture and Singapore’s tropical climate. Years of continuous hot/cold expansion and heat expansion cause the membrane to lose flexibility, become brittle, separate from the concrete substrate or develop hidden tears. Even if the surface looks intact, water may already be travelling beneath the failed waterproofing layer.
Moisture trapped inside the concrete structure also contributes to repeated waterproofing failures. In many cases, contractors apply a new waterproof coating before allowing the concrete slab to dry properly. This seals moisture inside the structure, creating hydrostatic pressure beneath the coating. Eventually, the pressure causes blistering, delamination or new cracks, allowing water to penetrate once again.
Structural movement is another major contributor to recurring terrace roof leaks. Reinforced concrete naturally expands under intense daytime heat and contracts during cooler evenings or after rainfall. This continual cycle of thermal movement gradually creates micro cracks, wall joint cracks, movement joint separation and fine fractures within the concrete slab. These openings may be almost invisible to the naked eye, yet they are large enough for rainwater to enter the building.
The deterioration of sealants around movement joints, planter boxes, parapet walls, drainage outlets and pipe penetrations is another frequently overlooked issue. As sealants age, they lose elasticity and eventually crack or separate due to constant thermal movement. Once seal damage occurs, water can bypass the waterproofing system entirely and enter hidden sections of the structure.
Drainage problems are equally important but are often ignored during previous repair works. A gutter choked with leaves, dirt or debris prevents rainwater from flowing away efficiently, causing water ponding on the terrace roof. Standing water places continuous pressure on the waterproofing membrane and significantly increases the likelihood of leakage. Likewise, a gutter damaged by corrosion, settlement or poor installation may allow water to overflow into surrounding concrete joints and wall connections.
Construction defects and poor workmanship also play a significant role in repeated waterproofing failures. Improper surface preparation, inadequate membrane thickness, poorly sealed overlaps, incorrect waterproofing application methods or failure to reinforce movement joints can all shorten the lifespan of a waterproofing system. Even premium waterproofing materials cannot perform effectively if they are installed incorrectly.
In some situations, the terrace roof itself is not the primary source of leakage. Water may enter through wall cracks, deteriorated external wall coatings, parapet walls, planter boxes, air-conditioning pipe penetrations or neighbouring structures before travelling beneath the terrace slab. Without comprehensive investigation, repairing only the terrace surface may leave the actual leak source untreated.
These hidden conditions explain why many property owners experience recurring leaks despite multiple rounds of waterproofing repairs. Replacing grout, applying waterproof paint or resealing visible cracks may provide temporary relief, but these methods rarely resolve the underlying waterproofing failure.
For this reason, professional waterproofing should always begin with identifying the actual sources of water leakage. Experienced waterproofing specialists use detailed site investigations and advanced technologies such as thermal leak detection, moisture mapping and structural assessments to trace hidden water paths before recommending the most appropriate repair solution. Once the root cause has been accurately identified, targeted non-hacking waterproofing methods, including PU Injection grouting, waterproofing sealant replacement and penetrative waterproofing treatments, can be carried out to provide a long-lasting solution rather than another temporary repair.
Terrace roof leaks rarely have a single cause. They are often the result of structural movement, ageing waterproofing systems, hidden cracks, drainage issues and construction defects working together over time.
Choosing an experienced waterproofing specialist ensures that the true source of leakage is identified before any repair work begins. An accurate diagnosis, combined with modern non-invasive repair methods, helps prevent unnecessary hacking and reduces the risk of recurring leaks.
SWC Construction specialises in diagnosing and repairing all types of waterproofing failures for residential, commercial and industrial properties across Singapore. From terrace roofs and balconies to bathrooms, roofs, basements and external walls, every project begins with a thorough site assessment to identify the actual source of water leakage before recommending the most suitable solution.
As a BCA-registered waterproofing contractor, BizSafe Level 3 certified company and HDB-appointed waterproofing contractor, SWC Construction delivers professional waterproofing solutions using advanced technologies such as thermal leak detection, PU Injection grouting and modern waterproofing treatments.
Supported by consistently strong Google reviews from satisfied homeowners, commercial building owners and MCST management teams, SWC Construction has built a reputation for delivering reliable, long-lasting waterproofing solutions throughout Singapore.
